Mobile 60 | Mobile Concrete Batching Plant

CONSTMACH MOBILE 60 full automatic Mobile Concrete Batching Plant is a suitable solution for temporary needs with its features of rapid installation, advantage of starting production in a short time and minimum infrastructure necessity. MOBILE 60 mobile concrete plant has the features of being able to have all necessary equipments for concrete production, even a cement silo is located on a single wheeled mobile chassis and this offers easy transportation and rapid installation advantages to its users.

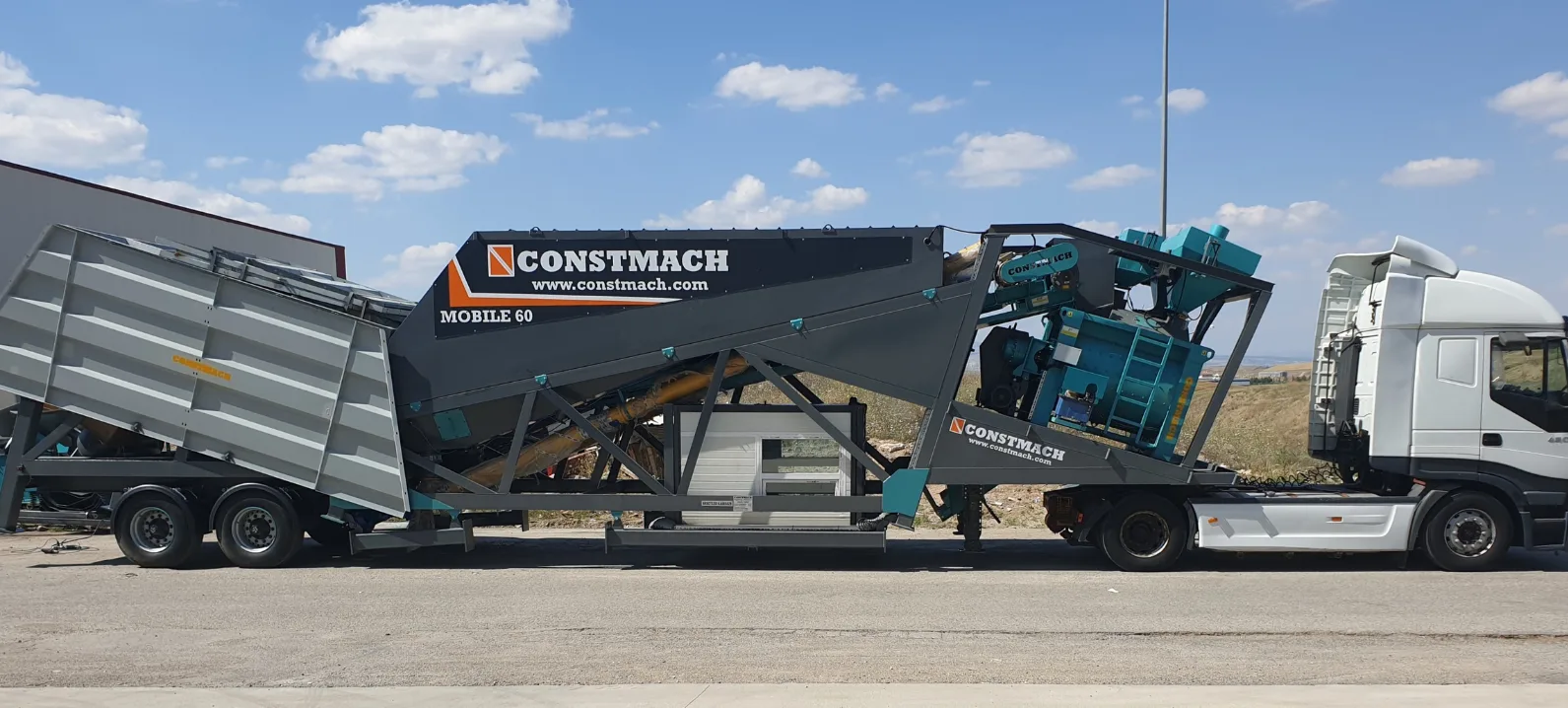

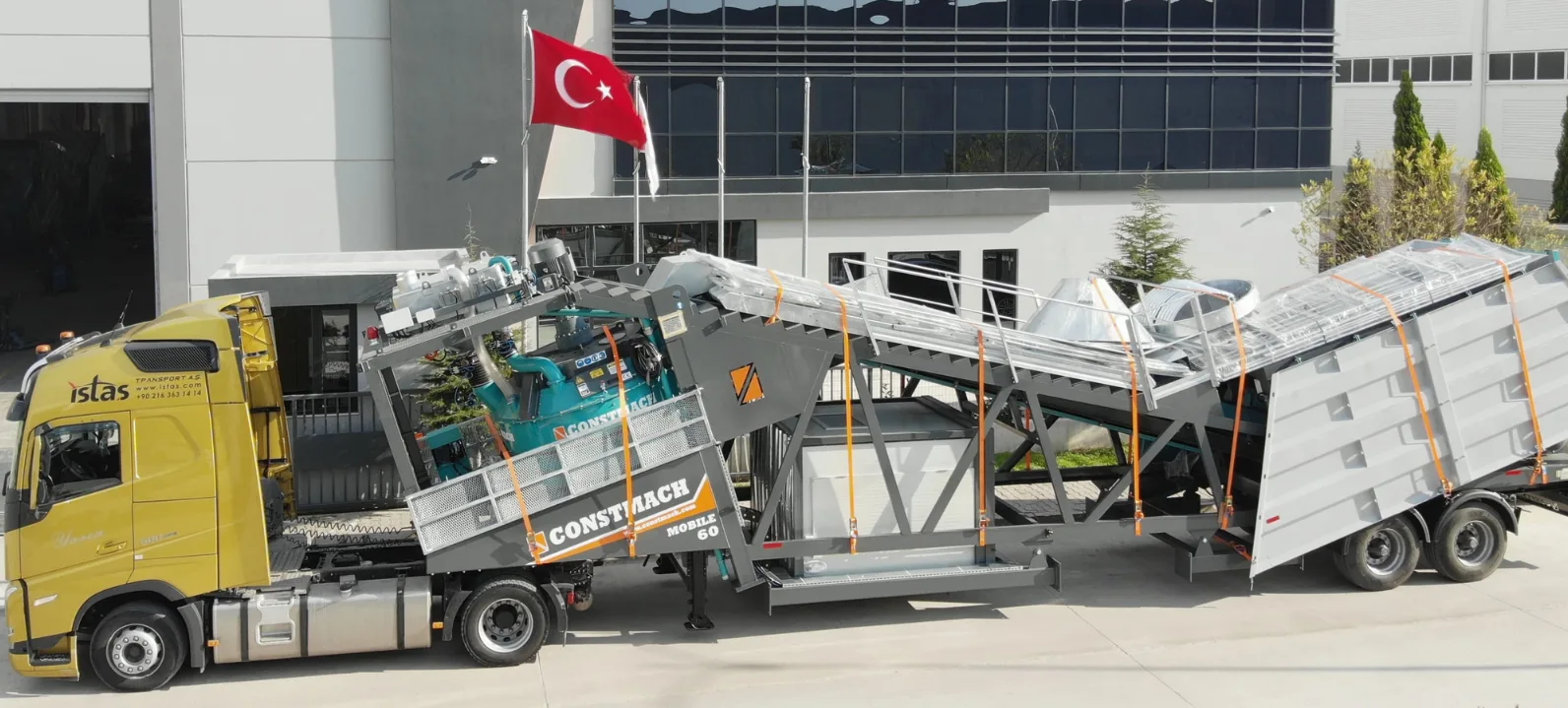

TRANSPORT POSITIONTRANSPORT POSITION

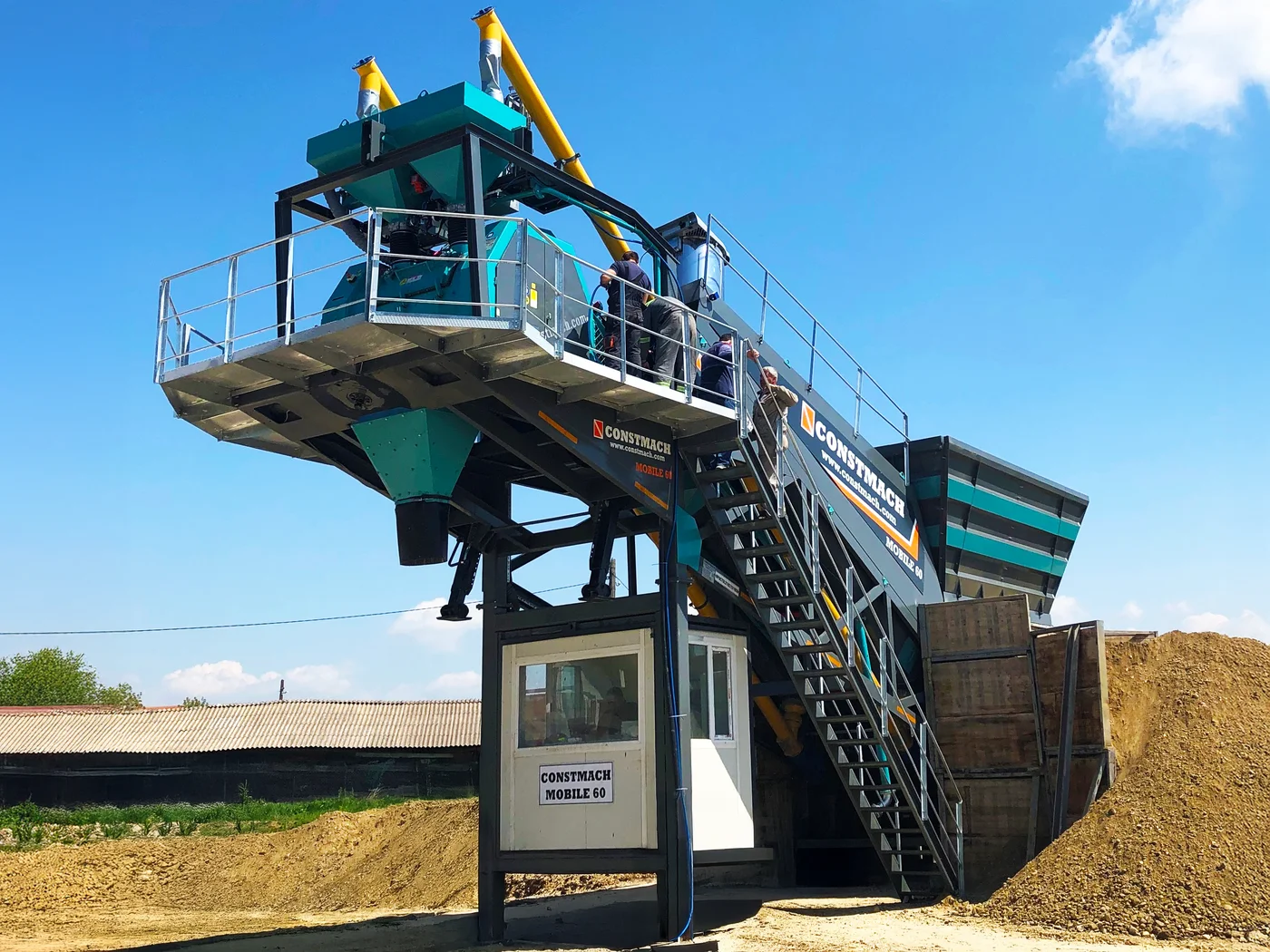

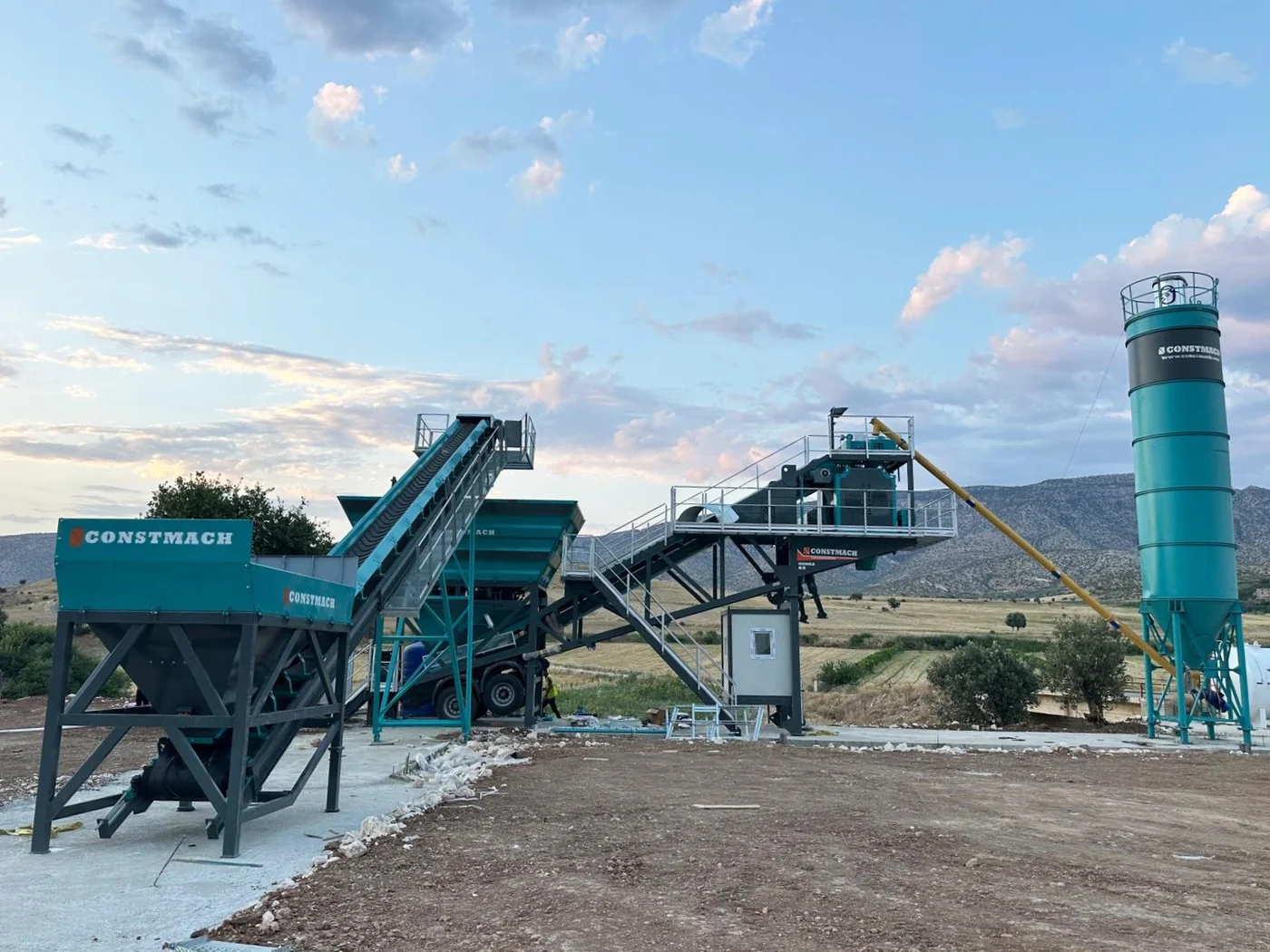

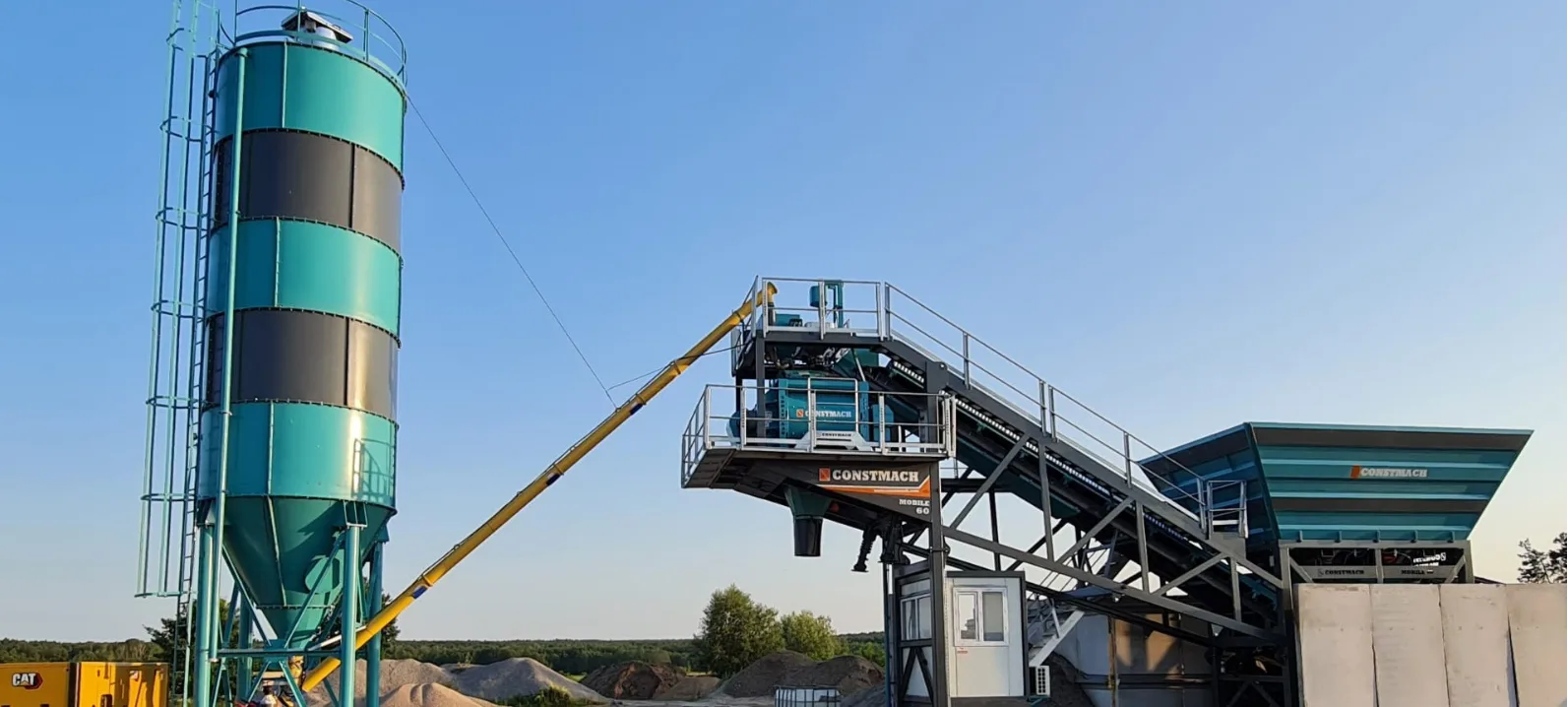

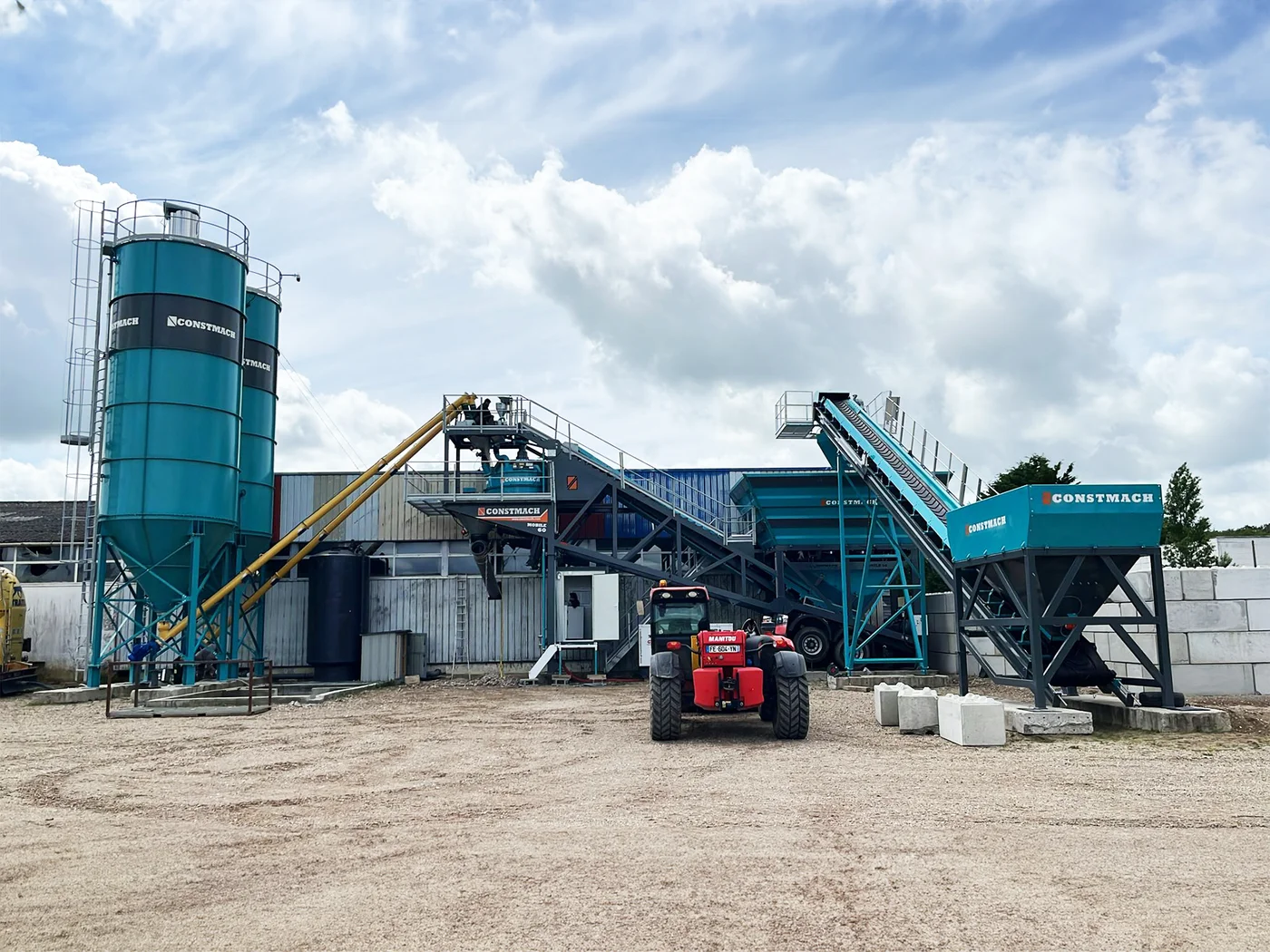

INSTALLED POSITIONINSTALLED POSITION

CONSTMACH MOBILE 60 mobile type Concrete batching plant requires a minimum site preparation. Just a flat ground that is capable to carry the total load of the plant is enough. Cement silos which are mounted to the chassis of mobile plants have 33 tonnes stock capacity. In case of necessity, external cement silos which have stock capacity from 50 to 500 tonnes can be also used. External type cement silos have always full steel legs to remove the necessity of concrete legs building.

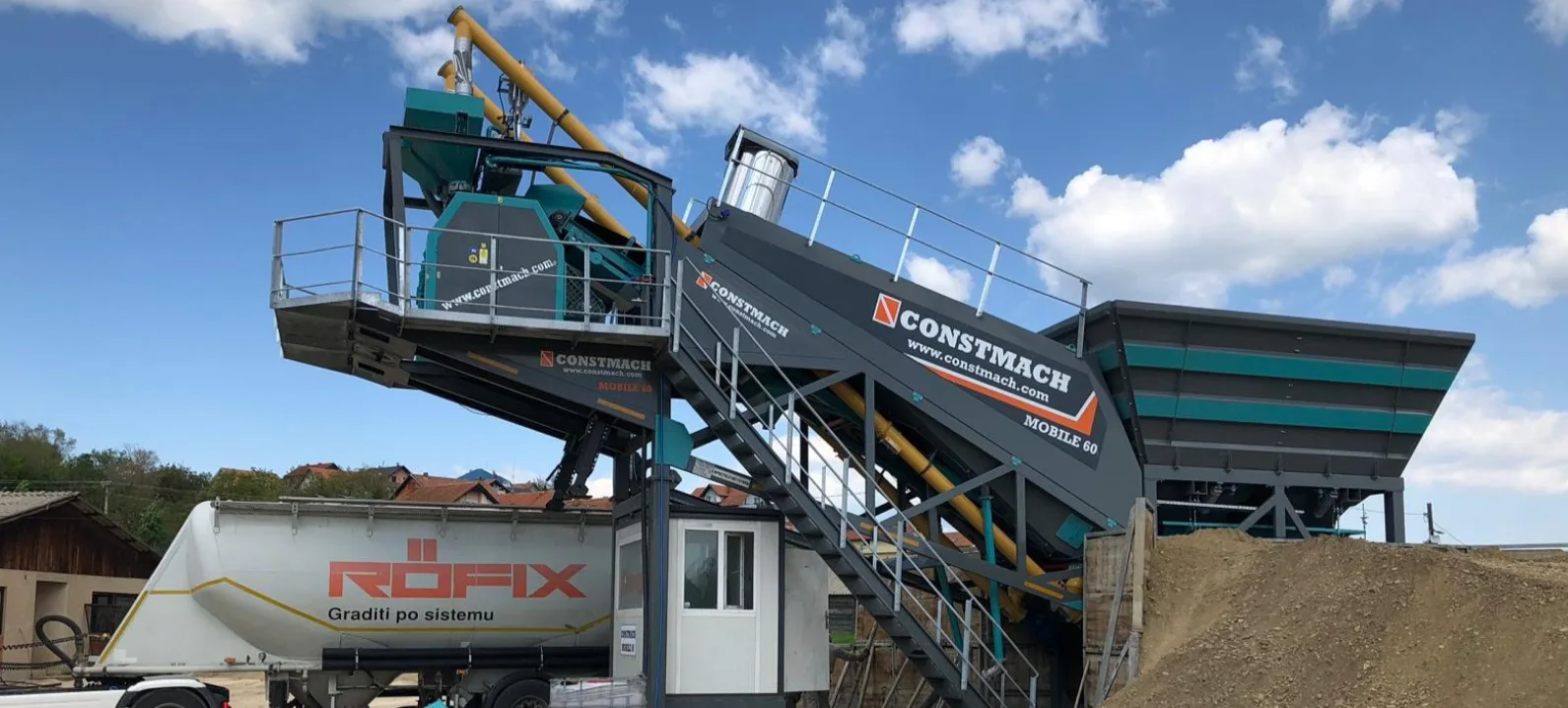

WITH INTERNAL SILOWITH INTERNAL SILO

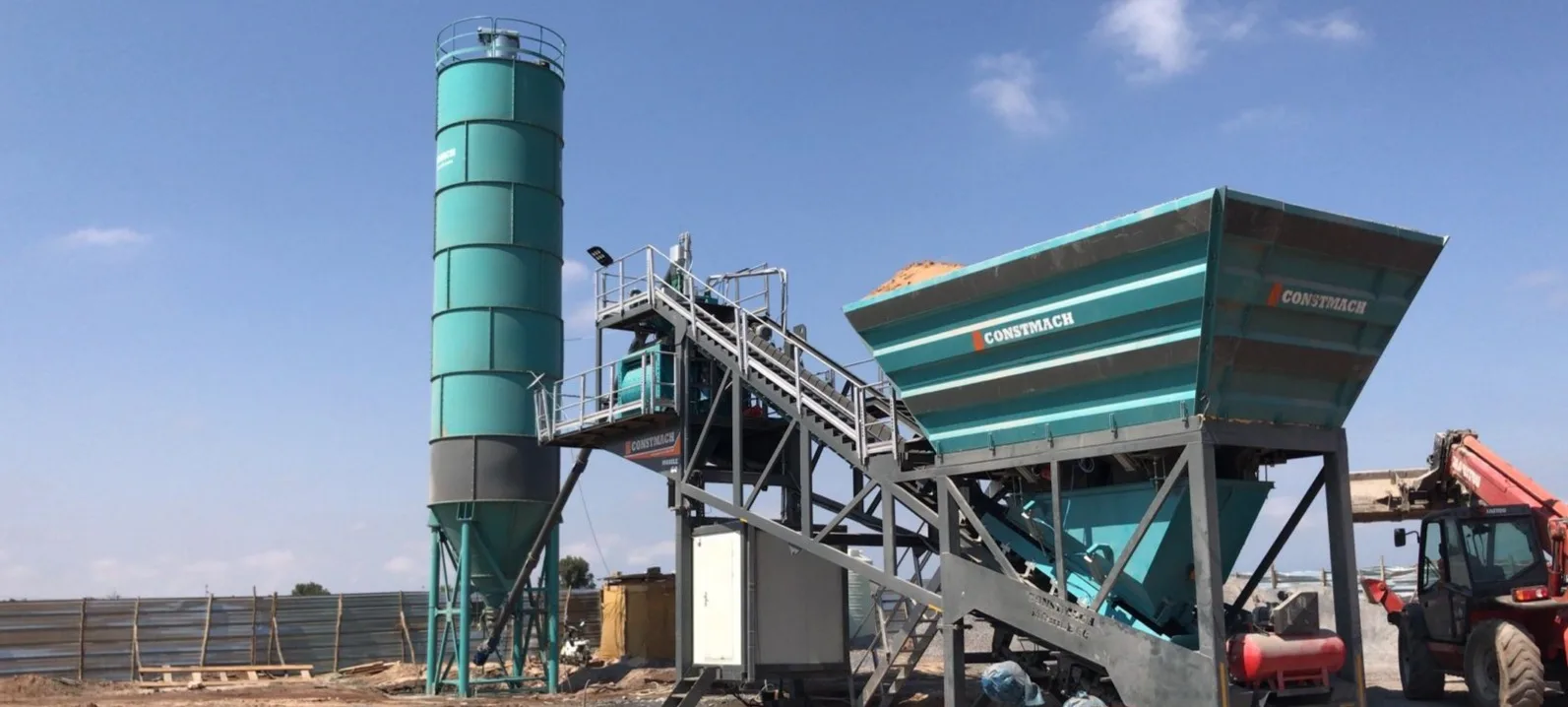

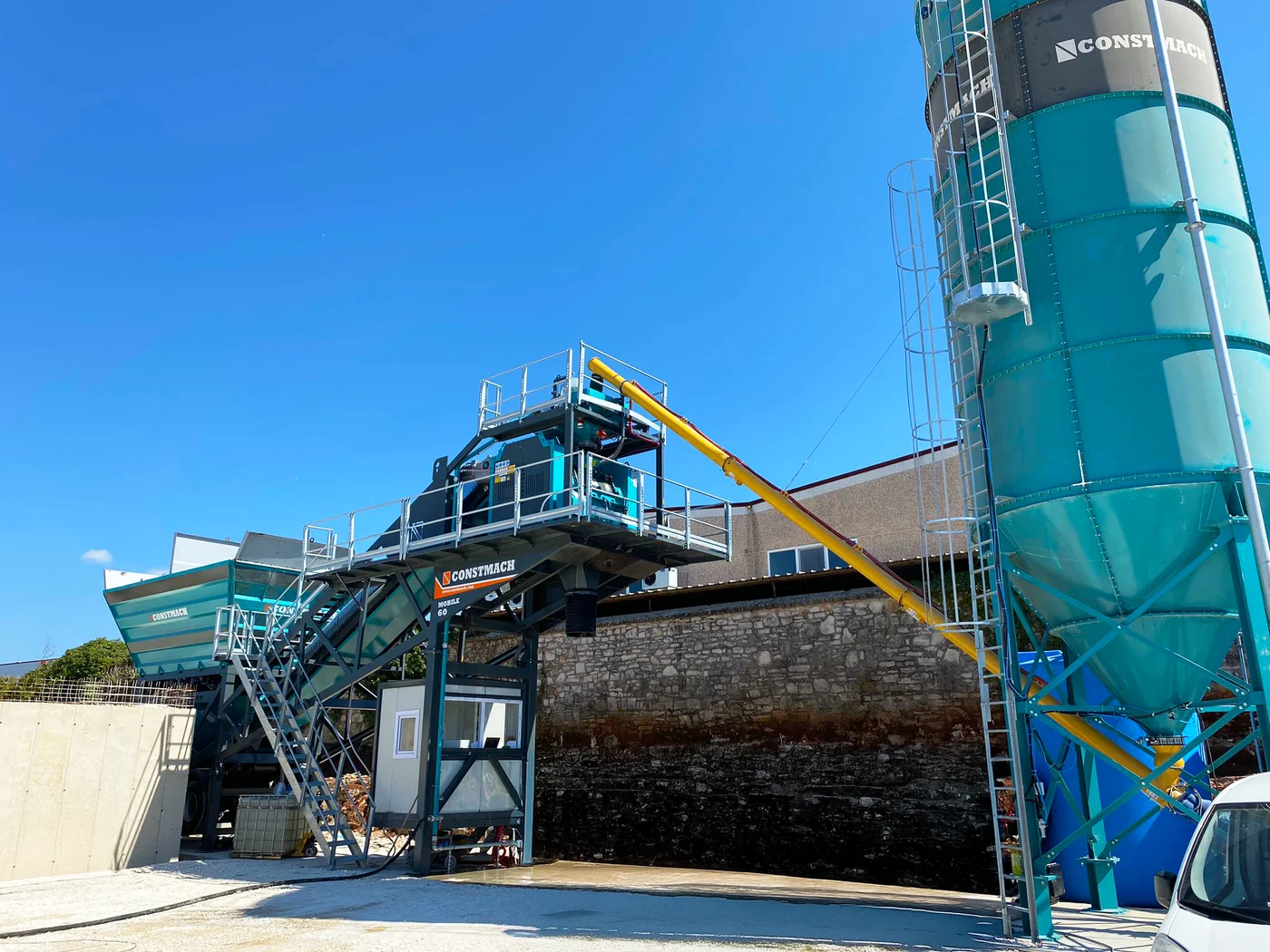

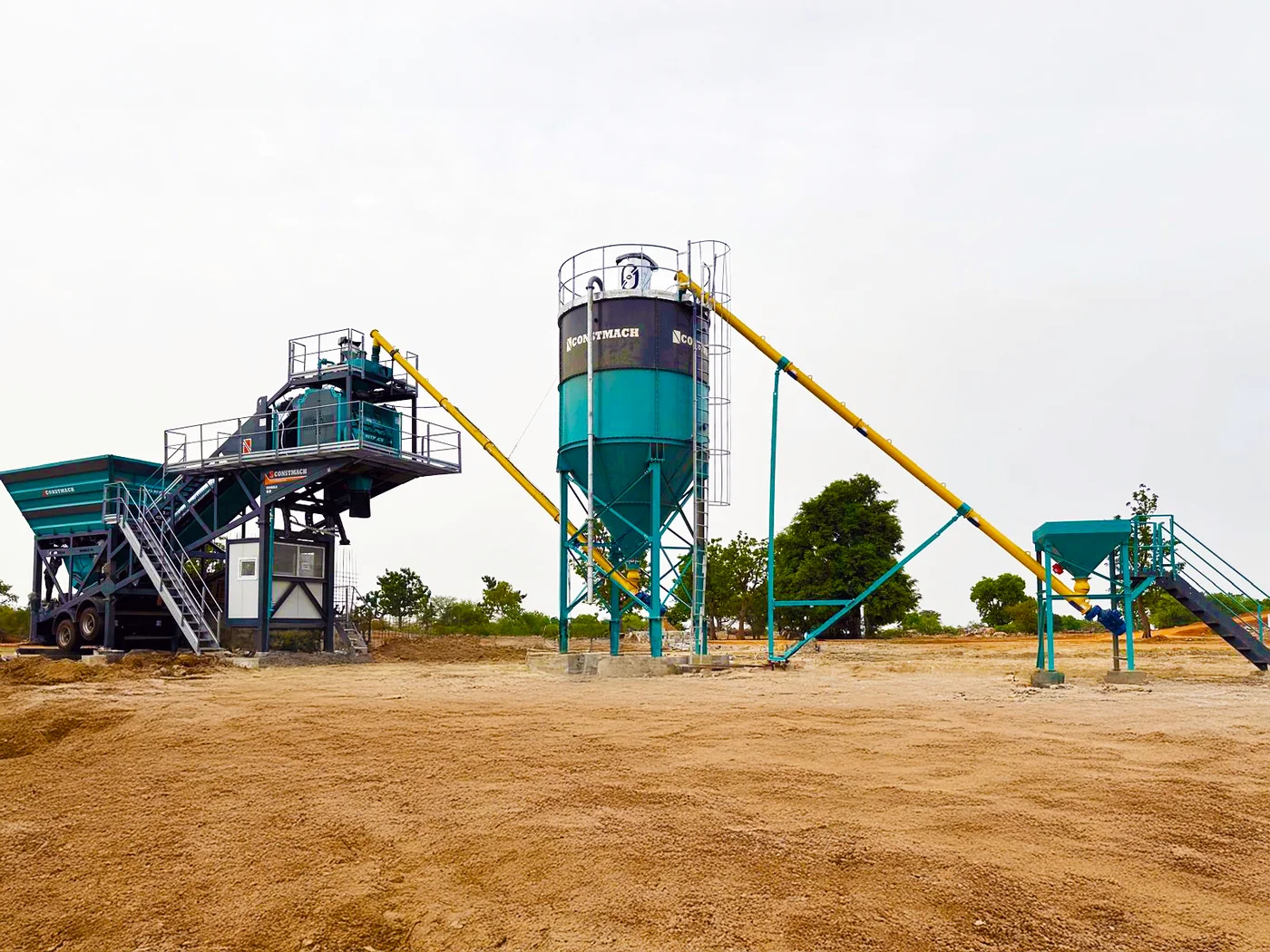

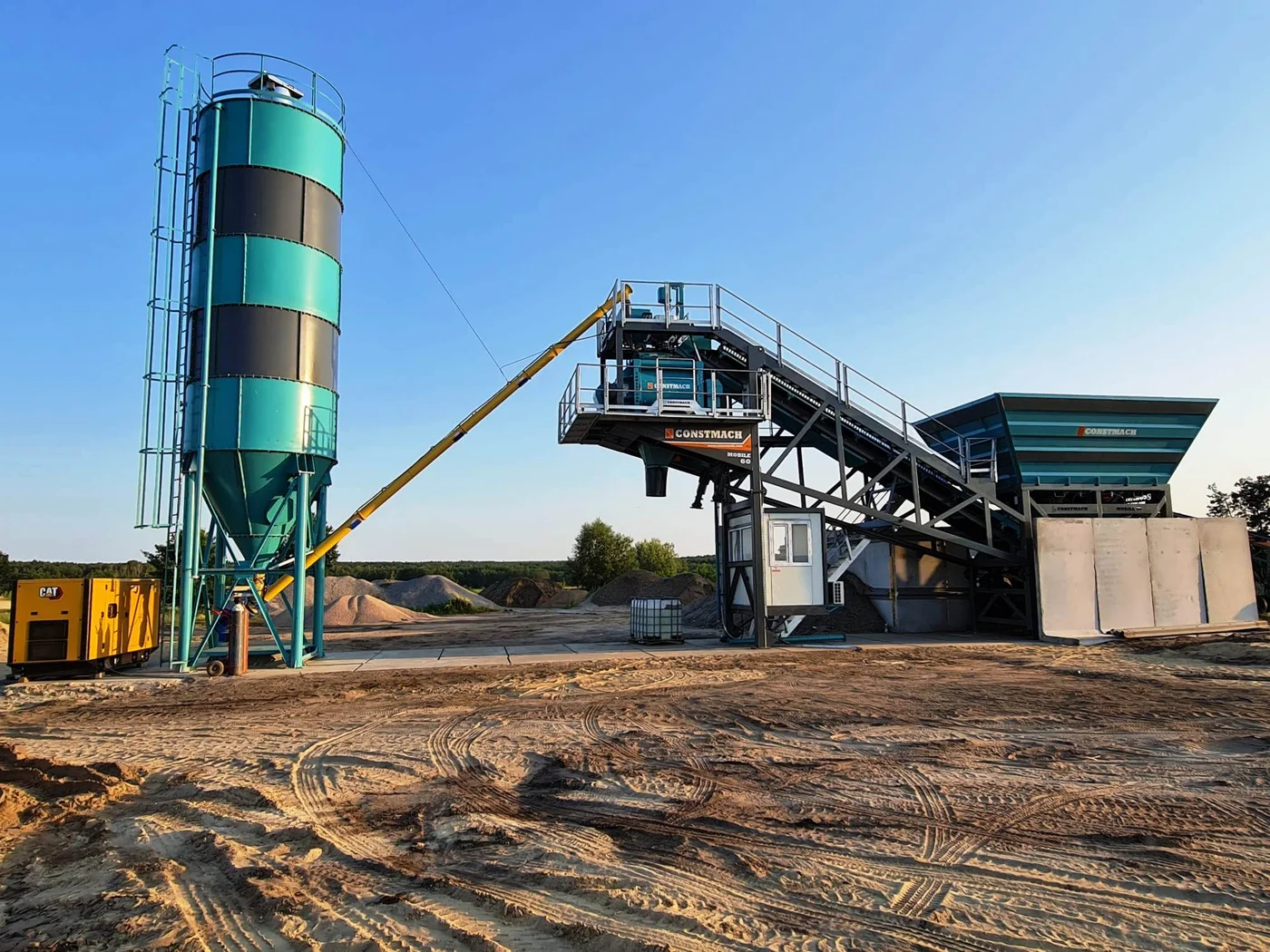

WITH EXTERNAL SILOWITH EXTERNAL SILO

Twin shaft, single shaft, pan or planetary type mixers can be used in MOBILE 60 concrete plant so that it could be used for different purposes such as ready mixed concrete, dry mixed concrete, precast concrete production etc.

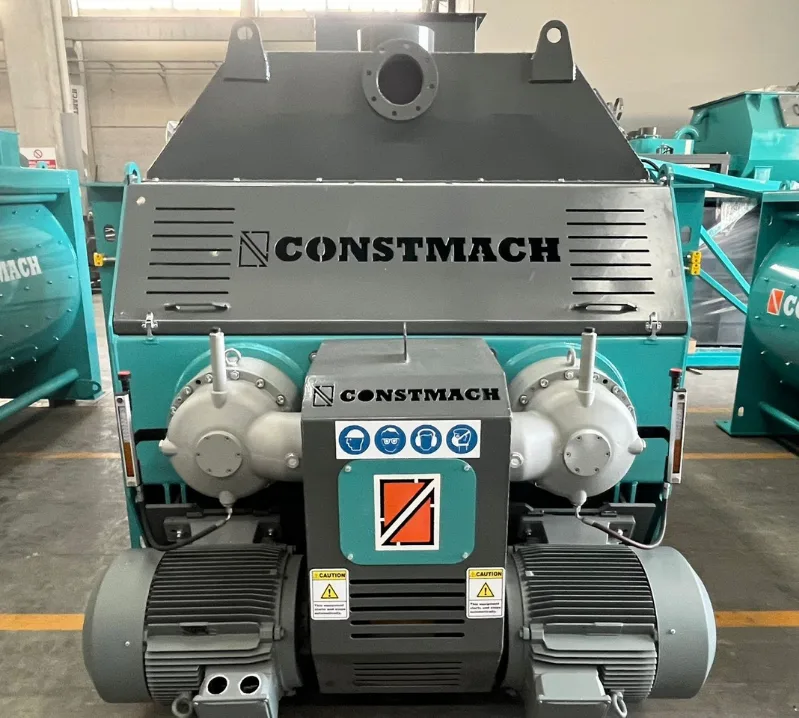

TWIN SHAFT MIXERTWIN SHAFT MIXER

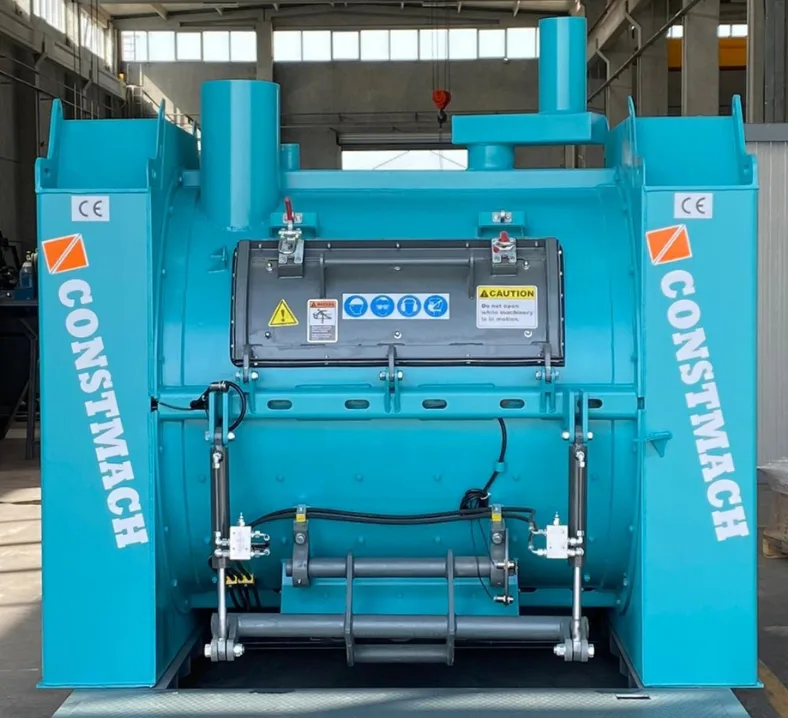

SINGLE SHAFT MIXERSINGLE SHAFT MIXER

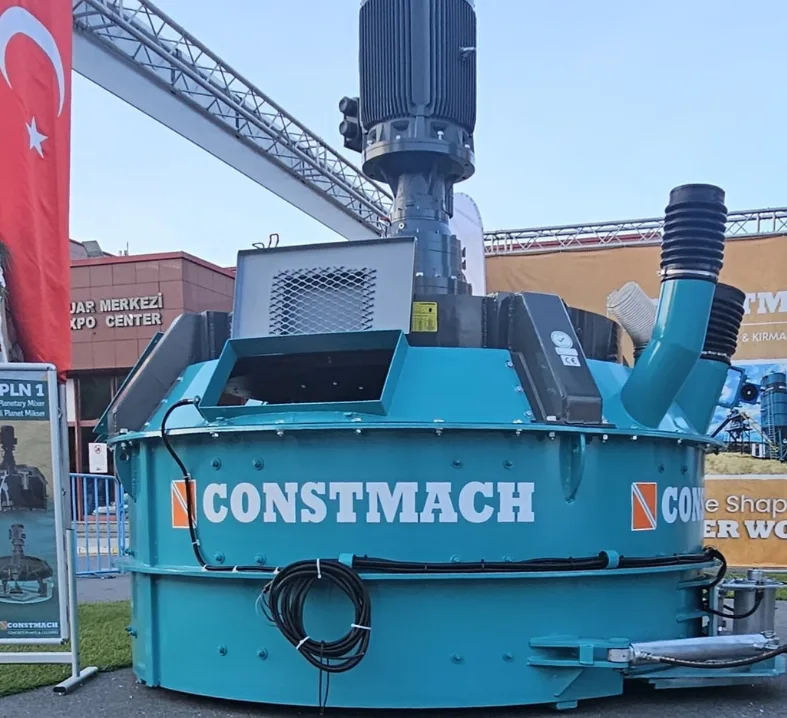

PLANETARY MIXERPLANETARY MIXER

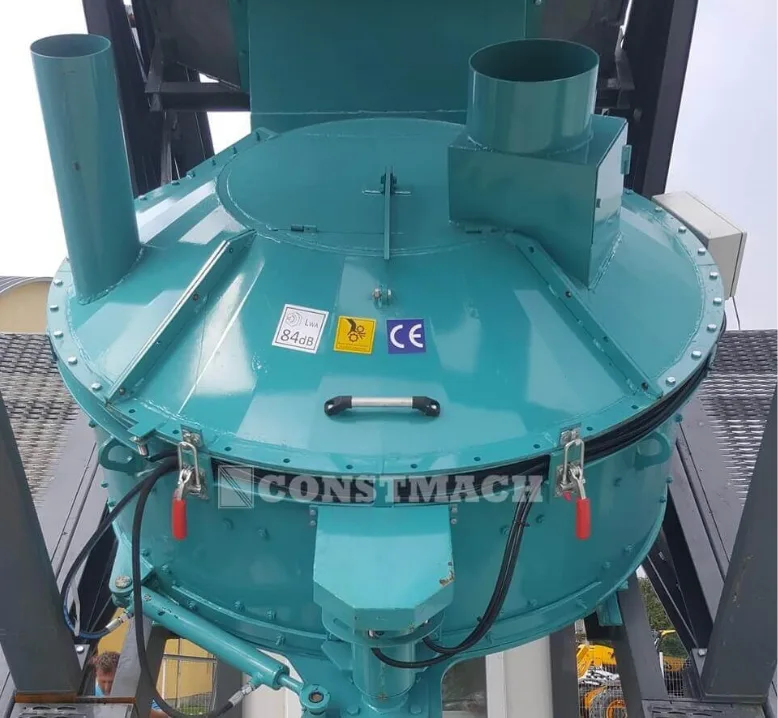

PAN MIXERPAN MIXER

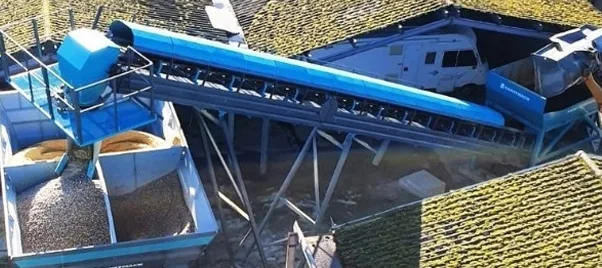

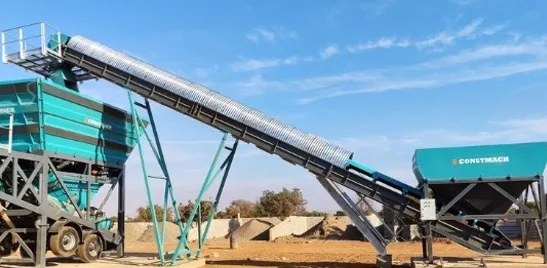

In case of using of mobile aggregate pre-feeding conveyors with our mobile concrete plants, necessity of construction of loading ramp is removed, thus the jobsite infrastructure investment is minimized.

AGGREGATE PRE-FEEDING SYSTEM

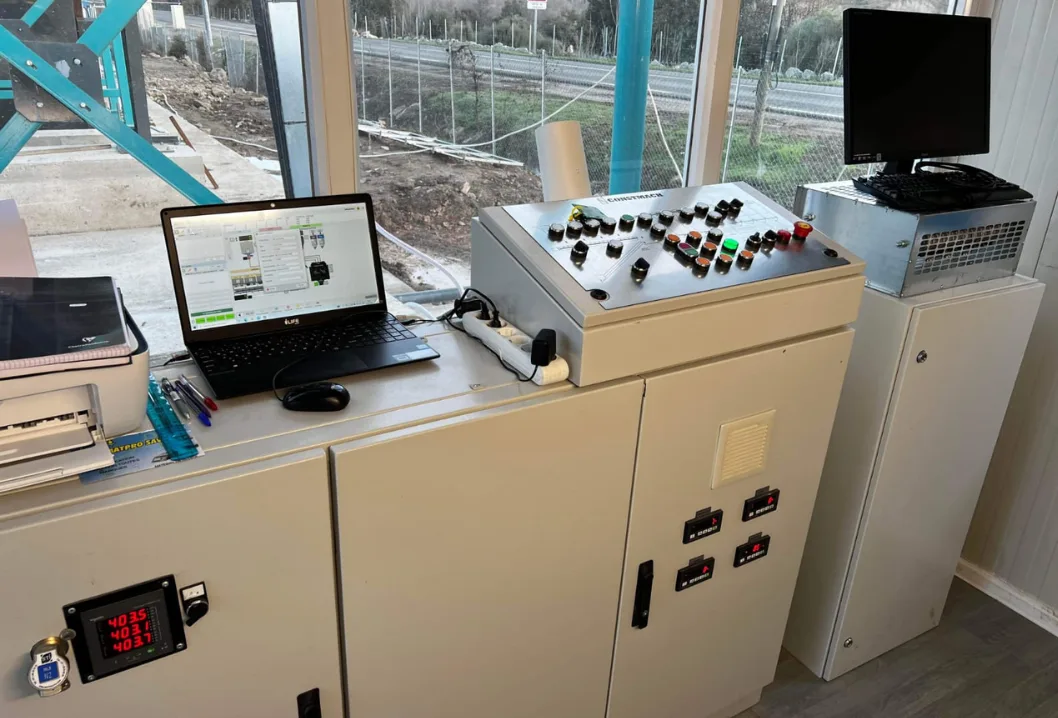

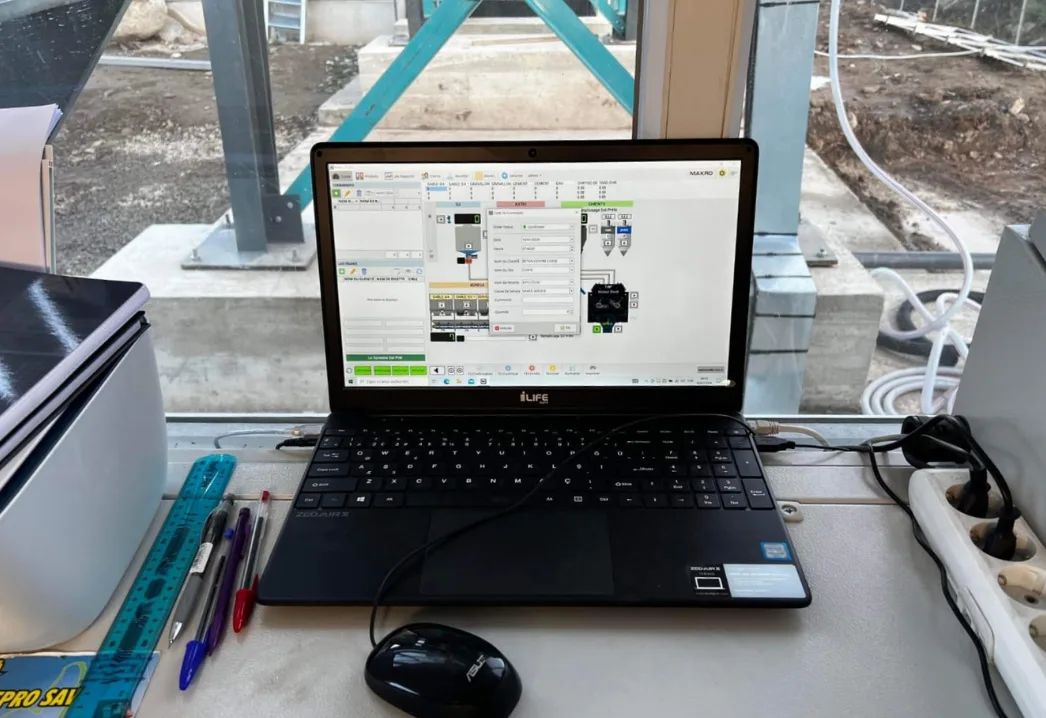

MOBILE 60 is equipped with high-tech automation system including top class SIEMENS & SCHNEIDER brand electronic components and PLC. The whole system is controlled through an advanced software which has sophisticated features and user friendly interface.

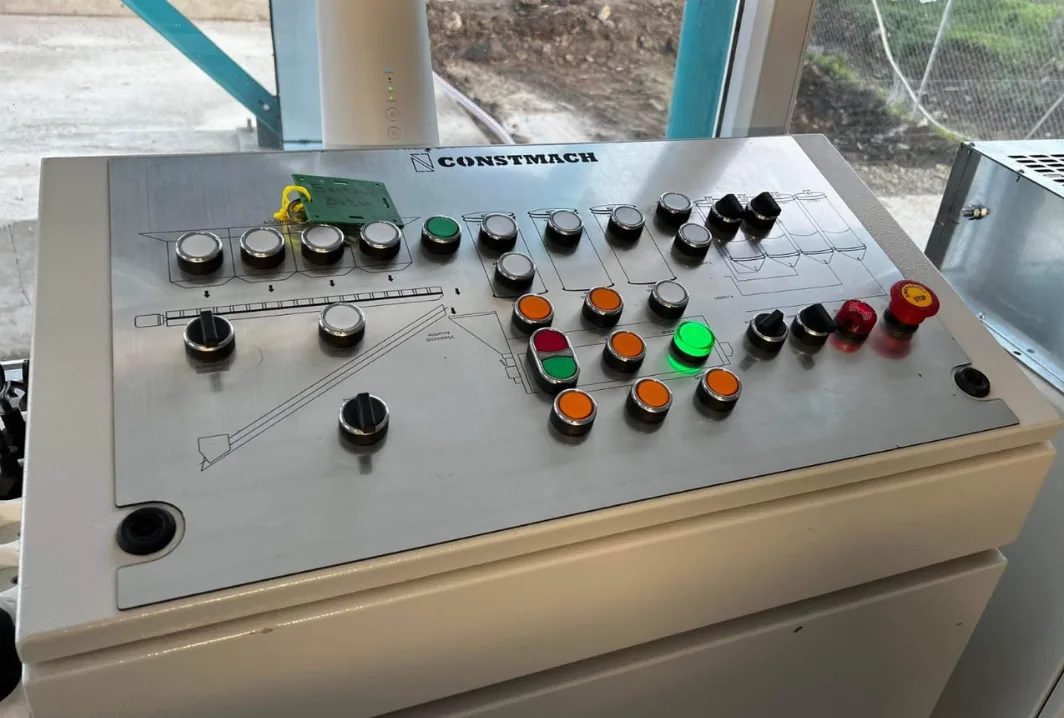

FULL AUTOMATIC CONTROL SYSTEM

Overall dimensions of MOBILE 60 are determined according to international road transport regulations and it is transported between jobsites easily.

EASY TRANSPORTATION

Mobile 60 Technical Specifications

Production Capacity60 m³/h
Sizes in Transport Position16(L) x 2.8(W) x 4.3(H) meters
Weight23 Tons
Total Motor Power90 kW
Required Electric Generator110 kVA
Mixer OptionsTwin shaft - Single Shaft - Planetary
Required area to operate300 m²
Aggregate Hopper Volume4 x 10 m³
Aggregate Weighing Hopper1 m³
Aggregate Transfer Conveyor800 x 12.000 mm
Mixer Wet Concrete Volume1 m³
Cement Weighing Hopper600 kg
Water Weighing Hopper300 lt
Additive Weighing Hopper20 lt
Air Compressor300 lt, 5.5 kW
Cement Silo Option 1Internal Type, embedded on the body, 23 tons capacity
Cement Silo Option 2External Type. Optional from 50 to 200 tonnes capacity.
Control TypeFULL AUTOMATIC

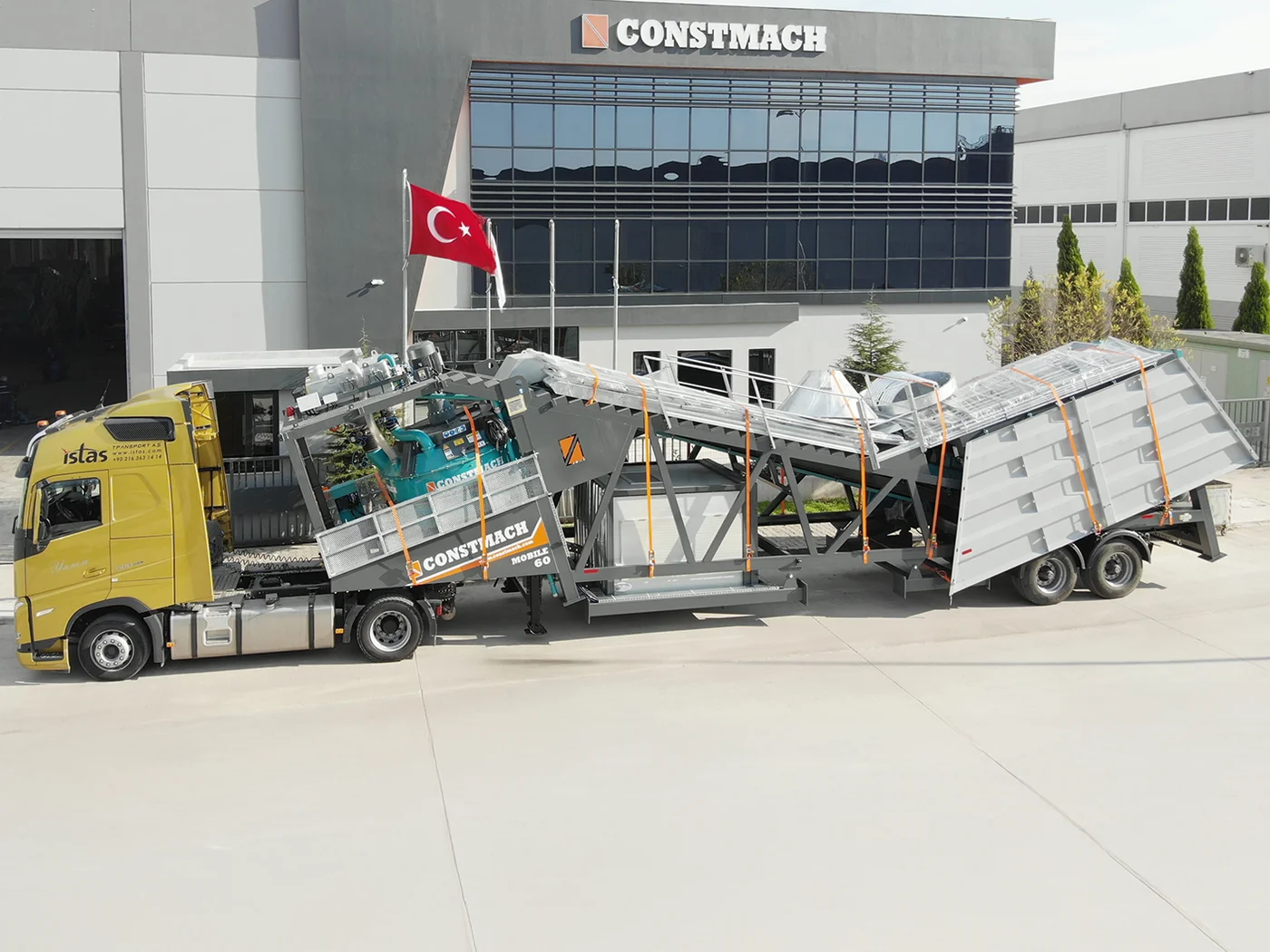

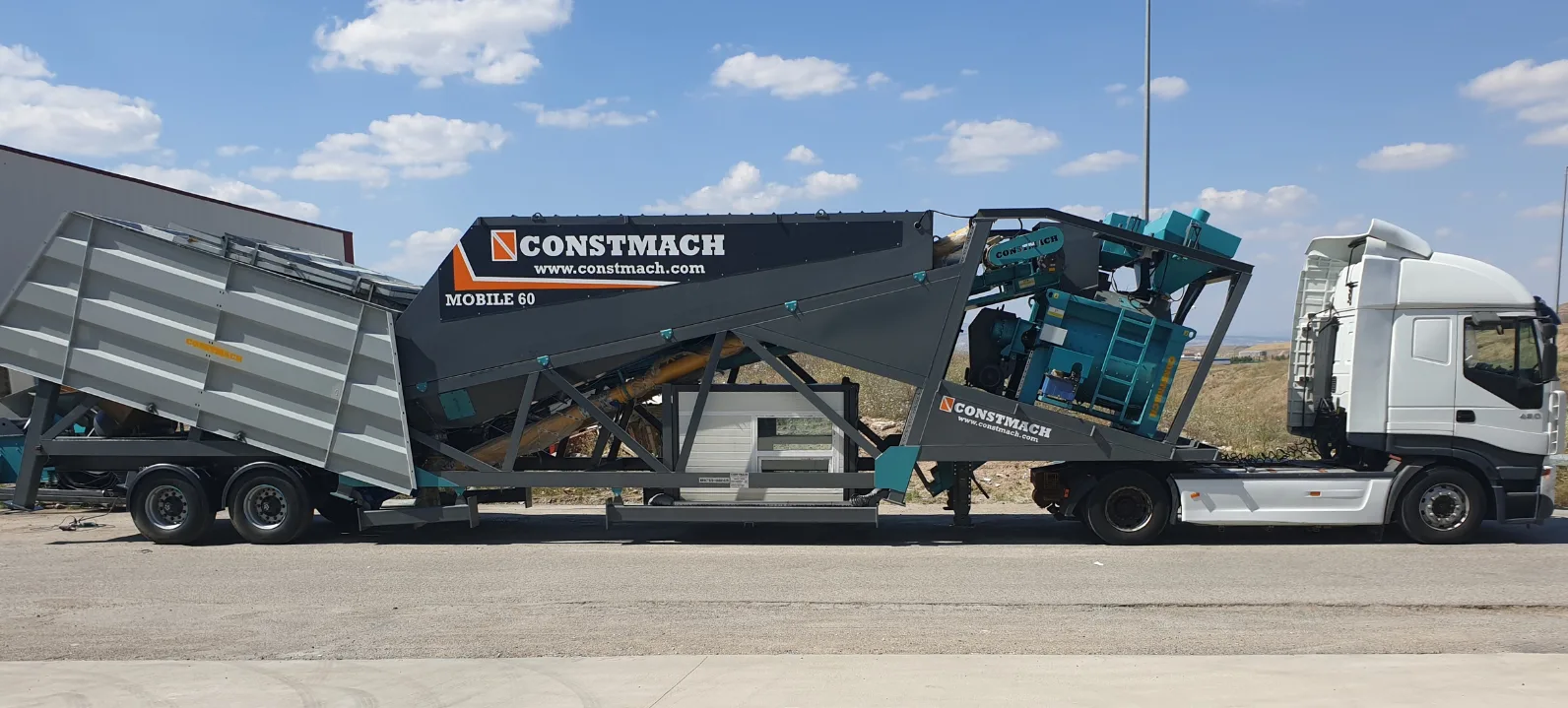

Mobile 60 Transport

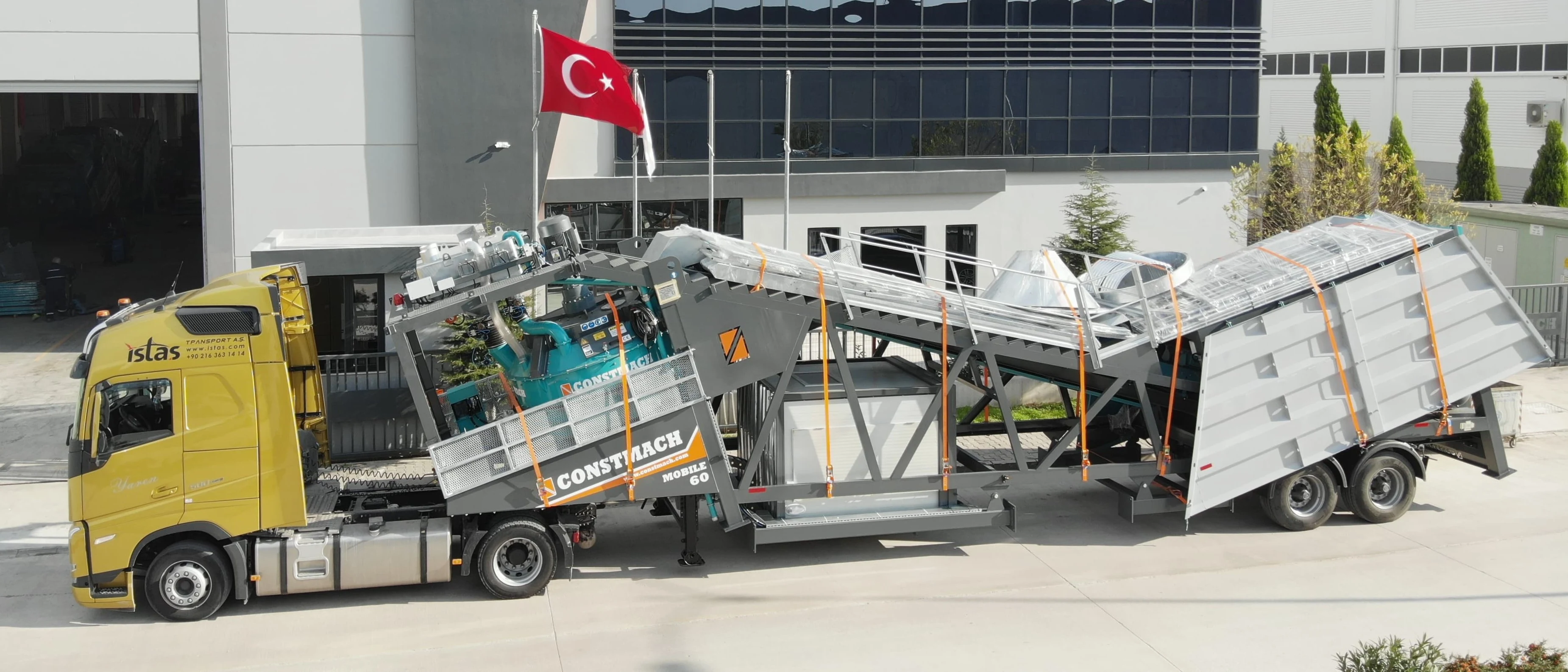

Mobile 60 transport position

Mobile 60Video

Mobile 60 General Layout

FAQ

Mobile 60 is purchased by contractors who follow projects across multiple sites in a single season — highway construction crews, regional precast distributors, and ready-mix operators serving short-term jobsite contracts. The mobile chassis is the key advantage: a project that lasts 6 months no longer requires a 3–4 week site-preparation phase before first concrete production. Mobile 60 is on site and producing within hours of arrival.

What Mobile 60 Produces

Mobile 60 produces ready-mixed concrete at a rated capacity of 60 m³/h. The configurable mixer (selected at the engineering stage) covers ready-mix concrete (low and high slump), dry-mix concrete, precast feedstock and specialty mixes. The chassis-mounted cement silo (Internal Type, embedded on the body, 23 tons capacity) holds enough stock for typical jobsite operation; external silos are added where higher buffer capacity is required.

Suitability Factors

Mobile 60 suits jobsites with: a flat load-bearing pad of approximately 300 m², road access for the single-trailer delivery, electrical supply matching 110 kVA, and water supply. Sites without these basics still benefit from the mobile design — temporary supply (diesel generator, water bowser) can be provided alongside, and Mobile 60 starts producing while permanent utilities are being installed.

Operating Considerations

Mobile 60 requires standard maintenance — daily walkaround checks, weekly grease points, monthly wear-plate inspection, quarterly overhauls. The road-legal chassis dimensions (16(L) x 2.8(W) x 4.3(H) meters) allow movement between jobsites without disassembly and without special-load permits in most countries. Movement preparation is typically a single shift: drain the cement silo, disconnect utilities, fold any extendable elements, drive away.

Comparison To Alternatives

Compared to stationary plants, Mobile 60 sacrifices peak capacity for mobility — for projects that move every 6–12 months, the lifetime cost-per-cubic-metre is lower despite the higher capital cost. Compared to compact stationary plants, Mobile 60 eliminates the foundation pad and is genuinely transportable as a single unit. For projects that stay on one site for multiple years, a stationary or compact plant is generally more economical.
