A pan concrete mixer mixes concrete in a circular pan with rotating tools, in a simple, versatile machine that gives a thorough, even batch. It is a common choice for precast, block and paving production and for smaller batches where a compact, dependable mixer is wanted. Constmach builds the pan CPM range in three sizes, from the CPM-0.5 at 500 litres of compacted concrete per batch up to the CPM-2 at 2,000 litres.
What Is a Pan Concrete Mixer?
A pan concrete mixer is a forced-action mixer that works in a circular, vertical-sided pan. Mixing tools turn inside the pan and drive through the material, combining cement, water and aggregate into a uniform batch. Like all forced-action mixers, it mixes under power in a fixed chamber rather than relying on a tumbling drum, so it gives a controlled, even mix. The pan form is simple and compact, with the tools and a wall scraper covering the pan as they turn, which makes the pan mixer straightforward to run, easy to clean and versatile across a range of mixes.
The pan mixer sits between the everyday single-shaft mixer and the high-uniformity planetary mixer. It gives a thorough, even batch in a simple machine, which is why it is a long-standing favourite for precast, block and paver work and for smaller-batch production where a compact, reliable mixer is the right fit.
How a Pan Mixer Works
Inside the pan, the mixing tools turn around the centre and drive through the material as it sits in the pan. The blades lift and fold the mix, while a scraper runs close to the pan wall and another clears the centre, so material is kept moving off the surfaces and back into the mixing zone rather than caking. Over a short cycle, the tools work the whole batch until cement, water and aggregate are evenly distributed. The compact pan concentrates the mixing energy, which suits the controlled batch sizes pan mixers usually make. When the cycle finishes, a discharge gate in the pan floor opens and the batch drops into a skip, a mould-filling system or a transfer point below.
Why Choose a Pan Mixer?
The pan mixer is the choice when you want a simple, versatile mixer with a good, even action:
- Simple and dependable. A straightforward design is easy to run, service and clean.
- Versatile. It handles precast, block and paver mixes and general concrete across a range of batch sizes.
- Even mixing. The tools and scrapers work the whole pan, giving a uniform batch for quality products.
- Compact. The pan form fits neatly into precast and block lines and smaller plants.
For the highest output and stiff structural concrete a twin-shaft mixer leads, and for the most demanding fine and coloured work a planetary mixer gives the very best uniformity. The pan mixer is the versatile middle ground: a sound, even mix in a simple machine, well matched to block, paver and precast work.
The Constmach CPM Range
The CPM range covers three sizes, so the mixer matches the batch the work needs.
| Model | Charge volume | Compacted output | Drive |
|---|

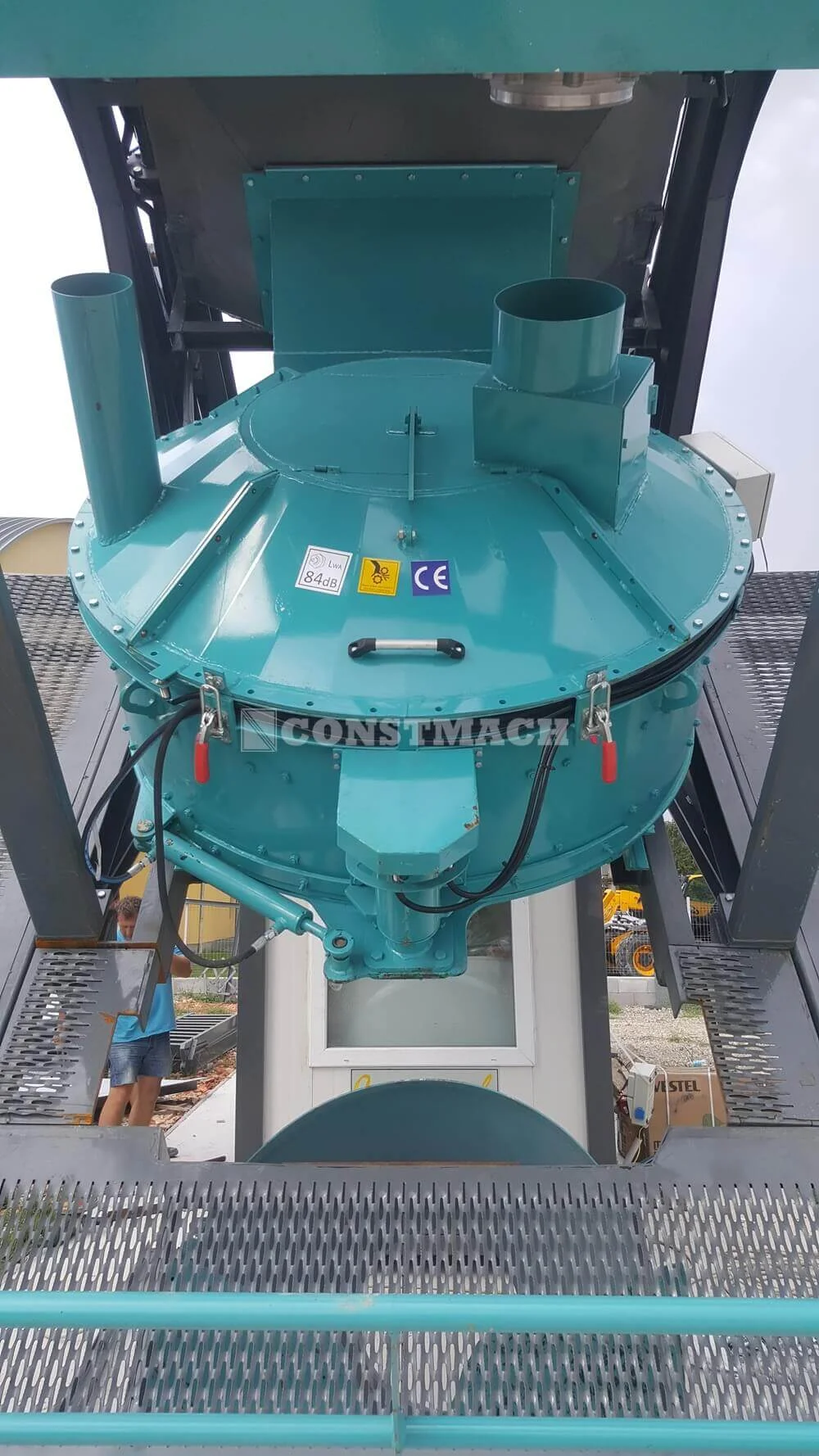

| CPM-0.5 | 750 lt | 500 lt | 22 kW |

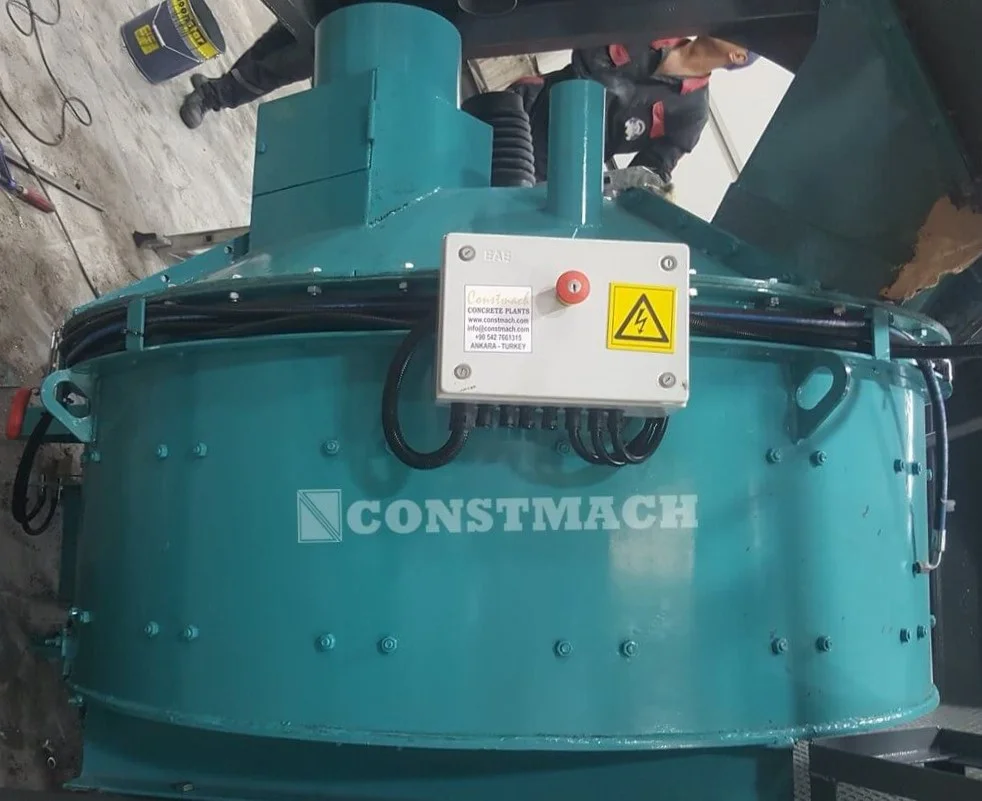

| CPM-1 | 1,500 lt | 1,000 lt | 37 kW |

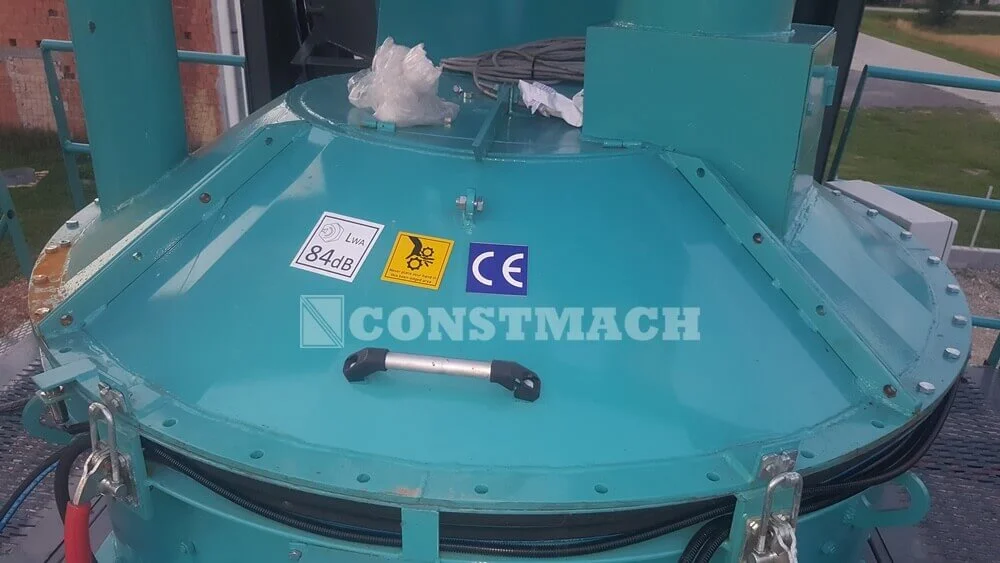

| CPM-2 | 3,000 lt | 2,000 lt | 55 kW |
The charge volume is the loose material the mixer takes; the compacted output is the finished concrete, which is the figure to size against. The CPM-0.5 suits small-batch precast and sample work, the CPM-1 mid-capacity precast and block production, and the CPM-2 the largest pan batches for precast, block and batching-plant use. The drive grows with the batch, from 22 kW on the CPM-0.5 to 55 kW on the CPM-2.
Build Quality and Wear Parts
A pan mixer works abrasive mixes, so its build decides how long it lasts and how well it keeps mixing. Constmach makes the CPM mixers from the same hard-wearing materials as the rest of its range:
- Pan wear liners in HARDOX or an equivalent wear-resistant steel, protecting the floor and wall
- Mixing blades and scrapers cast from NiHard, a hard, abrasion-resistant material
- A heavy-duty drive with a quality gearbox
- Bearings from established brands such as FAG, SKF or NACHI
- Automatic lubrication as standard, protecting the central seal and bearings
The central seal, where the drive enters the pan, is the part most exposed to cement and moisture, and the automatic lubrication feeds it continuously so the mixer stays sealed through long service. The HARDOX pan liner and NiHard blades hold their shape under abrasion, keeping the mix even between part changes. The pan mixer's simple, sturdy structure is part of why it is so dependable in day-to-day production.
Mixing Quality and Consistency
The pan mixer gives a thorough, even batch, which is what block, paver and precast work needs. Its tools and scrapers distribute cement, water and aggregate through the pan so the concrete reaches its design strength and workability throughout, and pigments are spread well enough for consistent coloured block and paver face mixes. Combined with accurate weighing on the plant, this gives products that match from batch to batch. For most precast and block work the pan mixer's consistency is exactly right; only the most demanding fine and architectural mixes call for the extra uniformity of a planetary mixer.
Pan vs. Planetary and Twin-Shaft Mixers
The three types suit different work. The twin-shaft mixer is built for high output and stiff structural concrete. The planetary mixer gives the most complete mix, for fine, coloured and architectural precast where every batch must match exactly. The pan mixer is the versatile, economical choice that gives a good even mix for block, paver and general precast at sensible cost. If your work is mostly blocks, pavers and standard precast, the pan mixer fits well; if it is fine architectural or coloured concrete, the planetary mixer is worth the step up; if it is high-output structural concrete, look to twin-shaft. Matching the type to the work is what gets the right mix at the right cost.
Where Pan Mixers Are Used
Pan mixers serve a broad range of precast and block production. Block and paving machines use them for the stiff mix they press, including the coloured face mix that gives pavers their surface. Precast workshops use them for standard elements. Smaller ready-mix and on-site plants use them where a compact mixer suits the output, and laboratories and sample rooms use the smallest models for controlled test batches. Wherever a producer needs a simple, versatile mixer that gives an even batch, the pan mixer earns its place.
The Pan Mixer in Production
In a block or precast line, the pan mixer is fed from the weighing system and discharges into a skip, a mould-filling system or directly to the machine it serves, with its operation timed by the control system. Its batch size and cycle decide how much concrete it produces in an hour, matched to the line it feeds. Because it is compact and simple, it fits neatly into block and precast setups and smaller plants. Sizing the mixer to the batch the line needs, and setting the mixing time for the mix, is what keeps the products consistent and the line supplied.
Discharge, Cleaning and Maintenance
A pan mixer discharges through a gate in the pan floor, operated by the control system. At the end of a shift the pan is washed out, because hardened concrete builds up on the blades and liner and disturbs the mixing, and the open pan form makes the mixer easy to clean. Maintenance centres on the wear parts and the seal: the liner, blades and scrapers are inspected and replaced before they thin too far, the automatic lubrication reservoir is kept topped up, and the gearbox, bearings and seal are checked on a schedule. The simple design keeps the routine light, and the open pan gives good access for both cleaning and part changes. Keeping a stock of common wear parts means a change is a planned job rather than an unplanned stop.
Ease of Cleaning and Access
One practical strength of the pan mixer is how easy it is to look after. The open, circular pan can be reached and washed out readily, which matters on block and paver work where the mixer is cleaned often and especially when switching between coloured mixes. Good access also makes the periodic blade and liner changes quicker, so the mixer spends less time out of service. For a producer running daily batches, a mixer that is fast to clean and easy to service is a mixer that keeps making products, and the pan form is well suited to both.
The Mixing Pattern in Detail
The pan mixer does its work with tools turning around the centre of the pan, and the way those tools and scrapers are arranged is what gives the even mix. The mixing blades drive through the material on a circular path, lifting and folding it, while a wall scraper runs close to the outer pan wall and a centre scraper clears the area near the hub. Those two scrapers matter, because the wall and the centre are the places a simple rotating tool would otherwise leave material sitting. By keeping material moving off both, the pan mixer brings the whole batch through the blades repeatedly in a short cycle, so cement, water and aggregate are evenly distributed. It is a simpler pattern than the planetary mixer's orbiting star, but for block, paver and standard precast work it reaches a thorough, uniform mix dependably.
Output in Practice for a Block or Precast Line
On a block or precast line, the pan mixer's contribution is measured against the machine or moulds it feeds. A block making machine presses on a fixed cycle, and the mixer has to keep its hopper supplied with fresh, even mix at that rate, so the mixer's batch and cycle are matched to the machine's pressing rate. Too small a mixer starves the machine; too large a batch means mix standing and starting to stiffen before it is used. The same logic applies to a precast moulding line. The aim is a steady flow of fresh, consistent mix that matches how fast the products are made. Sizing the CPM model to the line's real rhythm, rather than to a peak it rarely hits, is what keeps the line fed and the products consistent.
Value Over the Mixer's Life
The pan mixer is, in many ways, the value choice for block and precast work. It brings an even, forced-action mix at a lower cost than a planetary mixer, in a simple machine that is quick to clean and easy to service, so both the purchase price and the running cost stay reasonable. Built with HARDOX liners and NiHard blades, it holds up under abrasion, and because Constmach makes the wear parts in-house, replacements come from the original manufacturer through the mixer's life. For a producer making blocks, pavers and standard precast day after day, that combination of a good mix, low cost and easy upkeep keeps the cost per cubic metre down over many years of use.
Common Mistakes to Avoid When Choosing a Pan Mixer
The first mistake is sizing on charge volume rather than compacted output, which leaves the batch smaller than expected; size to the compacted figure, the concrete you place. The second is choosing a pan mixer for work that really calls for another type, expecting it to match a planetary mixer on the finest architectural mixes, or a twin-shaft mixer on high-output structural concrete. The third is comparing on price alone and overlooking the wear parts and lubrication, since a cheaper mixer in softer materials can cost more over its life. Matching the type, the true output and the build to your work avoids all three.
How to Choose the Right CPM Model
Two questions usually settle the choice:
- What batch size does your line need? Match the compacted output to the work. CPM-0.5 to CPM-2 covers small-batch and sample work up to mid-capacity precast and block production.
- What are you making? Blocks, pavers and standard precast suit the pan mixer well; the finest coloured architectural work points to a planetary mixer, and high-output structural concrete to a twin-shaft unit.
Settle these at the order stage and you get a pan mixer matched to your work and your batch. Constmach builds the CPM range in-house, with HARDOX pan liners, NiHard blades and automatic lubrication as standard, and supports each mixer with spare parts and technical help through its working life.
