A planetary concrete mixer mixes in a circular pan with tools that turn on their own axis while also orbiting the centre, a planetary motion that sweeps the whole pan and leaves no dead spots. That gives an exceptionally even, thorough mix, which is why planetary mixers are the choice for precast, coloured concrete, self-compacting concrete and other fine or demanding mixes. Constmach builds the planetary CPLN range from the CPLN-0.5 at 500 litres of compacted concrete per batch up to the CPLN-2 at 2,000 litres.
What Is a Planetary Concrete Mixer?
A planetary concrete mixer, sometimes called a counter-current or pan mixer with planetary drive, mixes in a fixed circular pan. Inside, a mixing star carries blades that rotate on their own axis and, at the same time, travel around the centre of the pan, the way a planet spins while orbiting. Because the tools move on this compound path, they reach the entire pan area in every revolution, sweeping the whole floor and the walls so no material is left unmixed. Scraper blades keep material moving off the pan wall and the centre. The result is the most uniform mix of any of the common mixer types, which matters most where the look and consistency of the concrete are critical.
This thoroughness is the planetary mixer's reason for being. Where a producer needs every batch to be identical, in colour, in fine-material distribution and in strength, the planetary mixer delivers it, which is why it is the standard for quality precast and architectural concrete.
How a Planetary Mixer Works
A planetary gearbox drives the mixing star so the blades spin and orbit at once. As the star turns around the pan, each blade carves its own path, and because the orbit and the spin combine, the blades overlap their tracks and cover the whole pan floor many times in a short cycle. This intensive, complete coverage is what distributes cement, pigment, fine fillers and water evenly through the batch. The action is contained in a compact pan rather than a long trough, so the mixing energy is concentrated, which suits the smaller, high-value batches planetary mixers usually make. When the cycle finishes, a discharge gate in the pan floor opens and the batch drops into a skip, mould-filling system or transfer point below.
Why Choose a Planetary Mixer?
The planetary mixer is the type to choose when uniformity matters above all:
- The most even mix. Full pan coverage leaves no dead spots, so the batch is uniform throughout.
- Colour consistency. Pigments are distributed evenly, so coloured concrete comes out the same shade batch after batch.
- Fine and demanding mixes. Self-compacting concrete, fine architectural mixes and face mixes for pavers rely on the even distribution a planetary mixer gives.
- Precast quality. For structural and architectural precast, where every element must match, the planetary mixer is hard to beat.
For high plant output or stiff, high-strength mass concrete, a twin-shaft mixer suits better, and for general ready-mix a single-shaft or pan mixer may be enough. But for fine, coloured and precast work, the planetary mixer is the right tool.
The Constmach CPLN Range
The CPLN range spans five sizes, so the mixer matches the batch the work needs.
| Model | Charge volume | Compacted output | Drive |
|---|

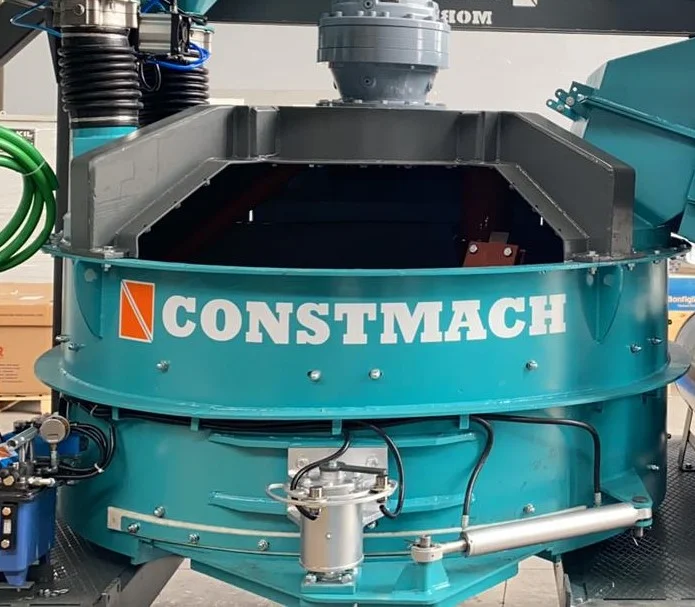

| CPLN-0.5 | 750 lt | 500 lt | Single mixing star |

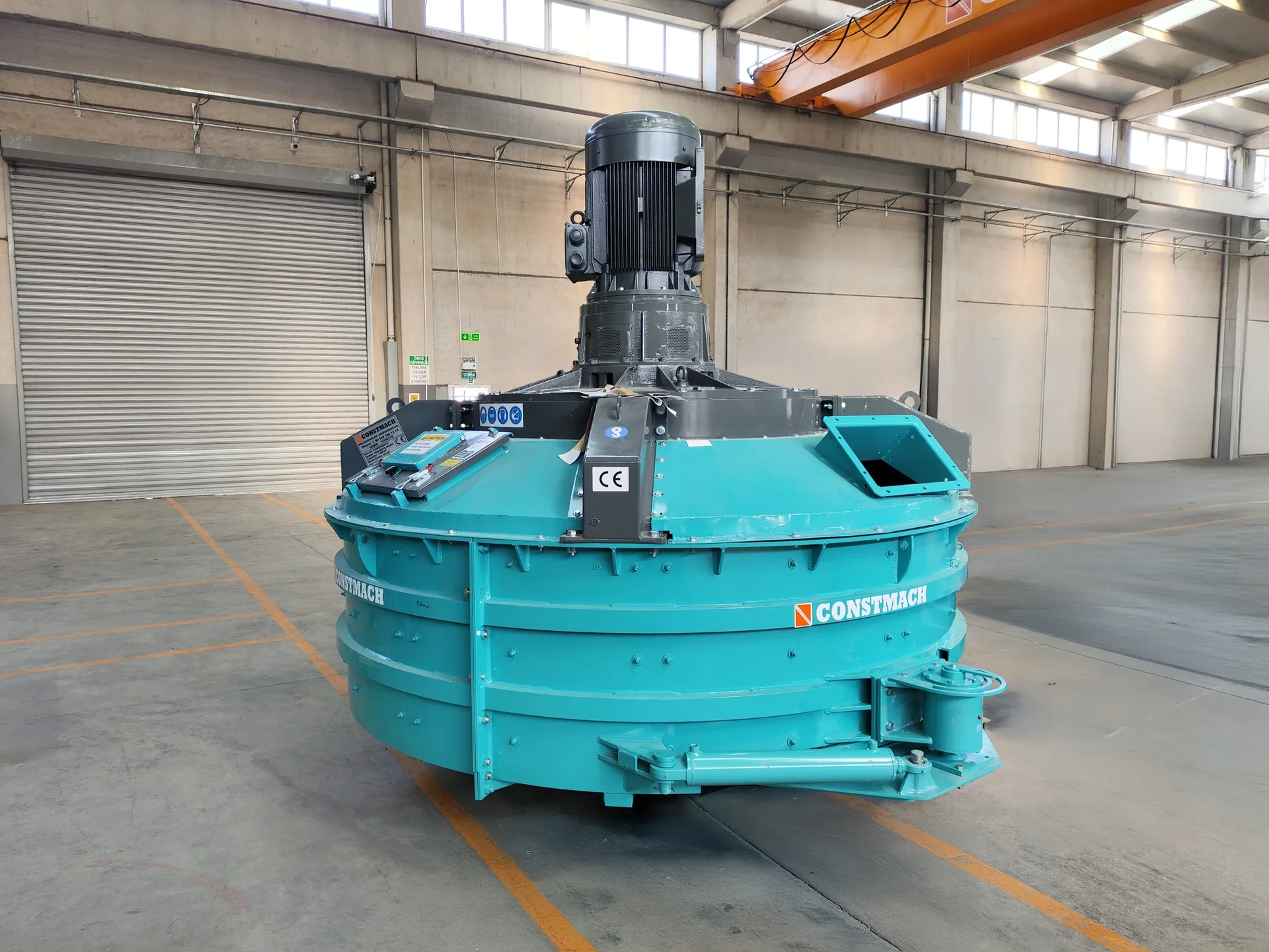

| CPLN-0.75 | 1,000 lt | 750 lt | Single star, 30 kW |

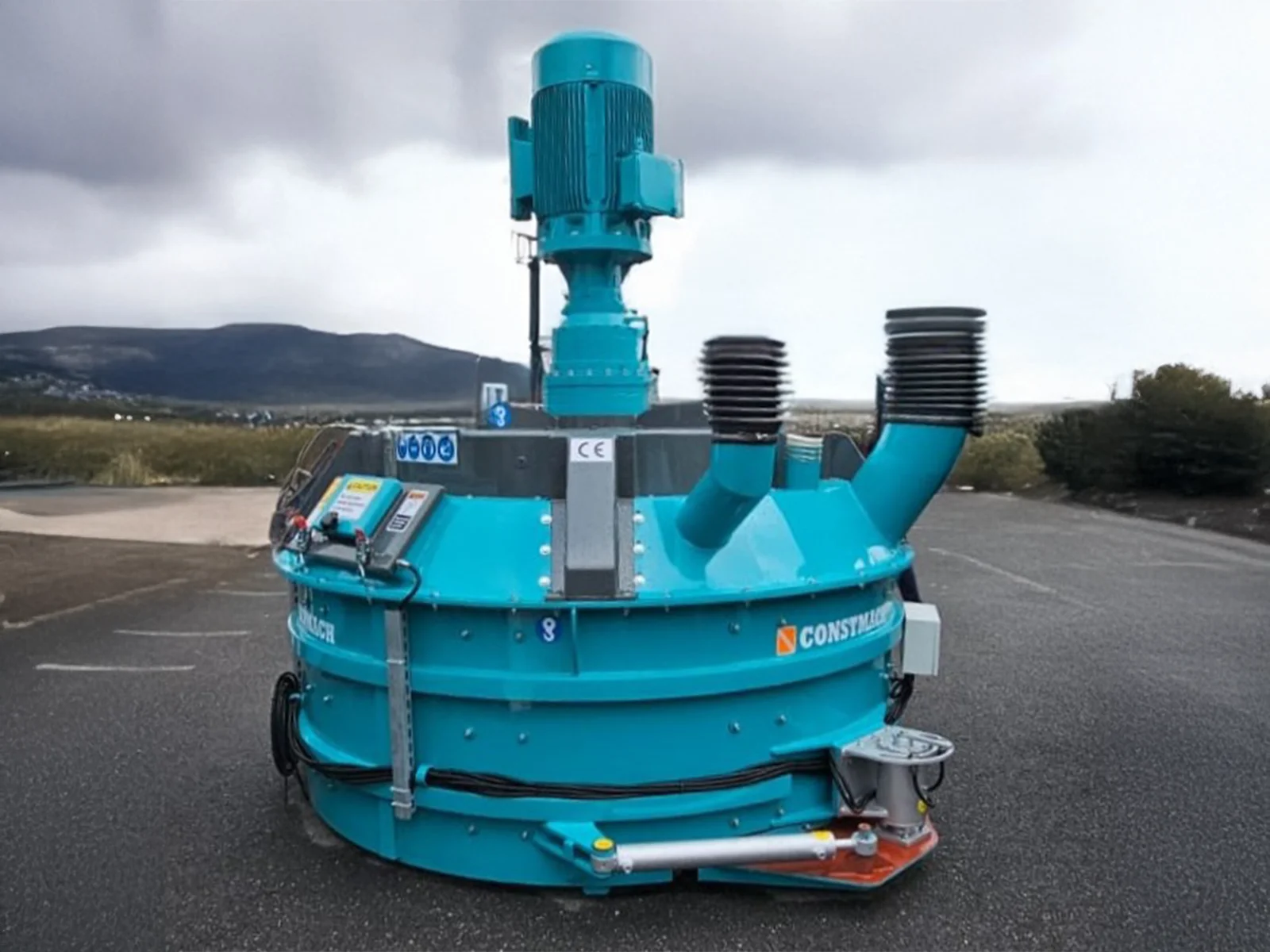

| CPLN-1 | 1,500 lt | 1,000 lt | Single 45 kW |

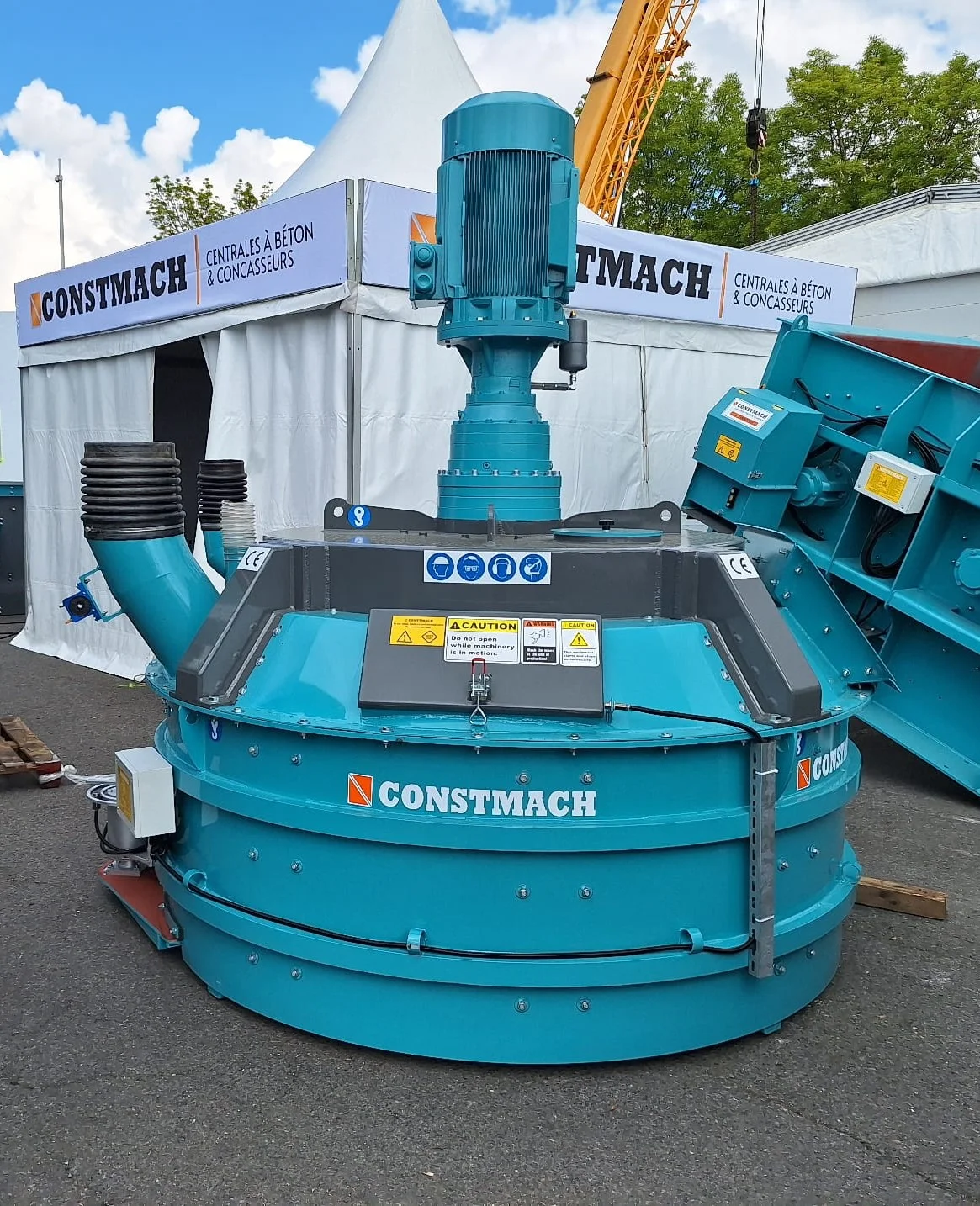

| CPLN-1.5 | 2,250 lt | 1,500 lt | Twin 30 kW |

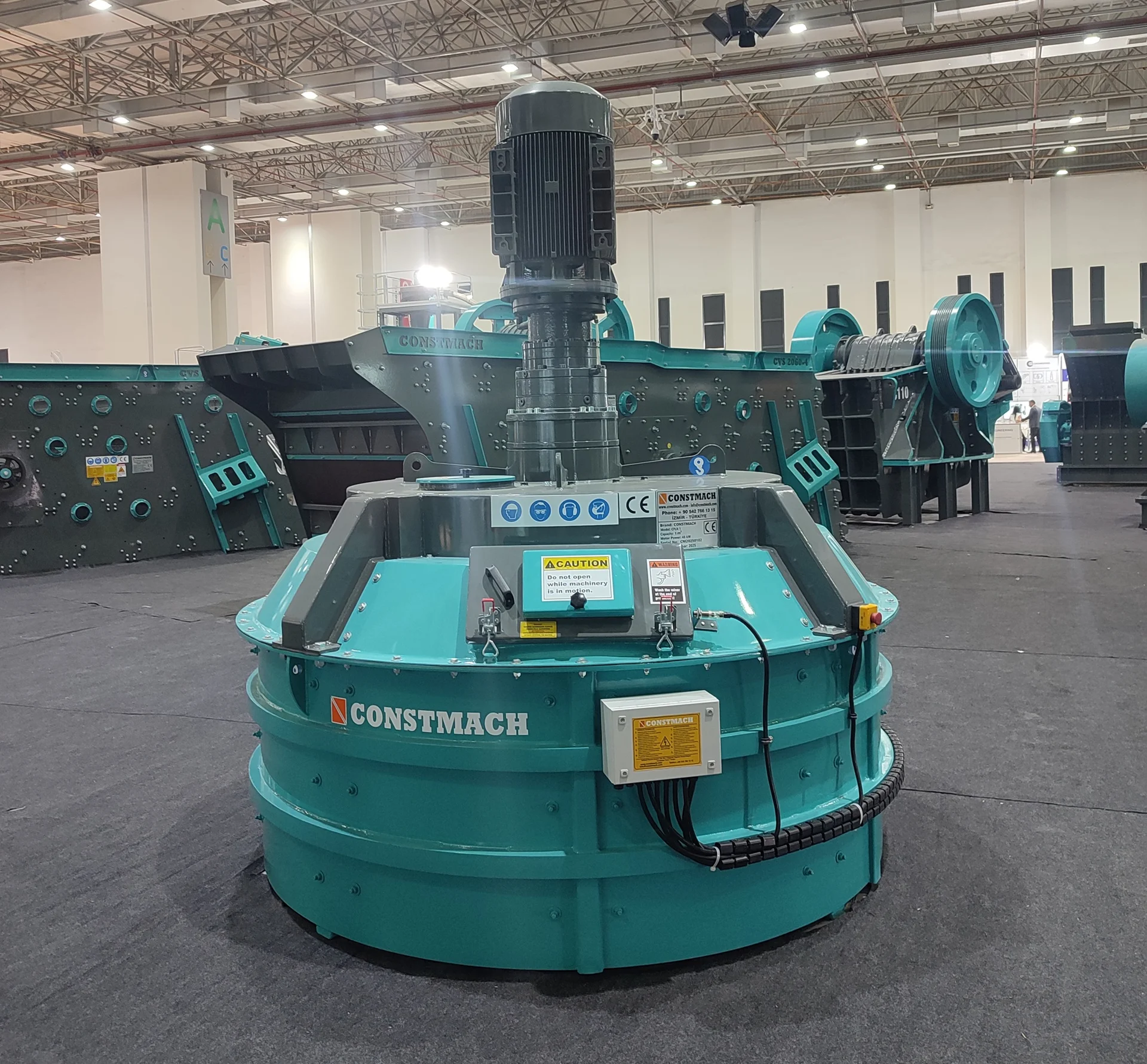

| CPLN-2 | 3,000 lt | 2,000 lt | Twin 37 kW |
The charge volume is the loose material the mixer takes; the compacted output is the finished concrete, which is the figure to size against. The smaller CPLN-0.5 and CPLN-0.75 suit precast workshops and growing producers, the CPLN-1 a production-scale precast line, and the larger CPLN-1.5 and CPLN-2 high-consistency mixing in larger batches. The drive grows with the batch, from a single mixing star on the smallest model to twin stars on the CPLN-1.5 and CPLN-2.
Build Quality and Wear Parts
A planetary mixer works fine, often abrasive mixes at high intensity, so its build decides both mix quality and life. Constmach makes the CPLN mixers for that duty:

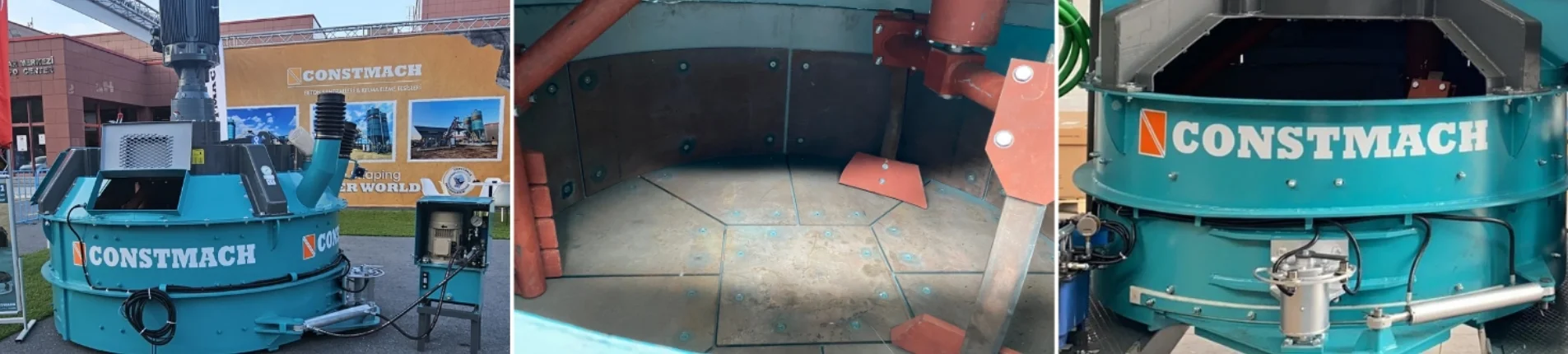

- Pan wear liners in HARDOX or an equivalent wear-resistant steel, protecting the floor and wall
- Mixing blades and scrapers cast from NiHard, a hard, abrasion-resistant material
- A planetary gearbox driving the mixing star, with quality components
- Bearings from established brands such as FAG, SKF or NACHI
- Automatic lubrication as standard, protecting the central seal and bearings
The central seal, where the drive enters the pan, is the part most exposed to cement and moisture on a planetary mixer, and the automatic lubrication feeds it continuously so the mixer stays sealed through long service. The HARDOX pan liner and NiHard blades hold their shape under abrasion, which keeps the sweep accurate and the mix even between part changes. On a mixer whose value is its uniformity, keeping the blades and their clearance to the pan correct is what preserves that uniformity over time.
Mixing Quality: The Planetary Advantage
The whole point of a planetary mixer is an even batch, taken further than any other type. Because the tools sweep the entire pan, pigments, fine fillers, fibres and admixtures are distributed completely, so coloured concrete holds its shade, self-compacting concrete flows as designed, and fine architectural mixes come out smooth and consistent. For precast, that means every element matches the last, which is exactly what a precast producer sells. The even distribution also helps the concrete reach its design strength uniformly, with no weak, poorly mixed pockets. This is mixing for quality first, and it is why the planetary mixer commands its place in demanding work.
Where Planetary Mixers Are Used
Planetary mixers serve work where the mix has to be right every time. Precast factories use them for structural and architectural elements that must match. Paver and kerb producers use them for the coloured, fine face mix that gives a quality surface. Producers of self-compacting concrete rely on the even distribution of fines and admixtures. Coloured and architectural concrete, terrazzo and other specialised mixes all suit the planetary mixer, and smaller models serve test and sample work where a controlled, repeatable mix is needed. Wherever uniformity and finish lead the requirement, the planetary mixer fits.
Planetary vs. Twin-Shaft and Pan Mixers
Each forced-action type has its place. The twin-shaft mixer leads on output and stiff, high-strength concrete; the single-shaft mixer is the economical choice for general ready-mix; the pan mixer is a versatile, compact unit for precast and smaller batches. The planetary mixer's distinction is the completeness of its mix: it covers the whole pan with no dead spots, which gives the best uniformity for fine, coloured and precast work. If your work is mainly high-output structural concrete, look to twin-shaft; if it is fine, coloured or precast where every batch must match, the planetary mixer is the better tool. Many precast producers run a planetary mixer for exactly this reason.
The Planetary Mixer in Production
In a precast or batching setup, the planetary mixer is fed from the weighing system and discharges into a skip, a mould-filling system or a transfer point, with its operation timed by the control system. Its batch size and cycle decide how much concrete it produces in an hour, matched to the production line it feeds. Because it concentrates intensive mixing into a compact pan, it suits the high-value, controlled batches of precast work rather than the largest plant outputs. Sizing the mixer to the batch the line needs, and setting the mixing time for the mix, is what delivers the uniform concrete precast depends on.
Discharge, Cleaning and Maintenance
A planetary mixer discharges through a gate in the pan floor, operated by the control system. At the end of a shift the pan is washed out, because hardened concrete builds up on the blades and liner and disturbs the clearance that keeps the mix even, so cleaning matters more on a planetary mixer than on a coarser machine. Maintenance centres on the blades, the liner and the central seal: the blades and their clearance to the pan are checked and adjusted, the liner and blades are replaced before they thin too far, the automatic lubrication reservoir is kept topped up, and the gearbox, bearings and seal are inspected on a schedule. Keeping the blades correctly set is what preserves the even sweep, so it is at the heart of planetary-mixer care. A stock of common wear parts keeps a change a planned job.
Counter-Current Action and Scrapers
Two details give the planetary mixer its complete coverage. The first is the counter-current arrangement available on these mixers, where the pan and the mixing star can move in opposite senses, so the material is worked against the direction of the tools rather than being carried around with them. That stops the batch simply spinning as a mass and forces it through the blades again and again. The second is the set of scraper blades. A wall scraper keeps material moving off the outer pan wall, and a central scraper clears the area around the hub, the two places a rotating tool would otherwise leave material sitting. Together, the orbiting star, the counter-current action and the scrapers mean every part of the pan, floor, wall and centre, is reached, which is the mechanical reason a planetary mixer leaves no dead spots.
Output in Practice for a Precast Line
Planetary mixers are usually sized for quality batches rather than the highest plant output, so their contribution is measured against the production line they feed. The mixing is intensive and the cycle short, but the batches are concentrated in a compact pan, which suits the controlled, high-value output of precast. What matters is matching the mixer's batch and cycle to the moulding or casting rate of the line, so the mixer keeps the moulds supplied without the line waiting or the concrete standing too long before it is placed. For coloured and fine work, a slightly longer mix for full uniformity is worth more than chasing the last few batches an hour. Sizing the CPLN model to the line's real rhythm is what gives a steady supply of consistent, quality concrete.
Architectural and Fair-Faced Concrete
Where concrete is seen, not just structural, the mixer matters even more. Fair-faced and architectural concrete, exposed-aggregate finishes and coloured precast all depend on a mix that is uniform to the eye as well as in strength, because any unevenness in colour or fine distribution shows on the finished surface. The planetary mixer's complete pan coverage is what gives that visual consistency, batch after batch, so a run of architectural panels or coloured pavers matches across the whole job. For producers whose product is judged on appearance, this is the difference between concrete that looks right and concrete that has to be rejected, and it is a large part of why the planetary mixer is the standard for visible precast.
Common Mistakes to Avoid When Choosing a Planetary Mixer
The first mistake is buying a planetary mixer for work that does not need it: for plain high-output structural concrete, a twin-shaft mixer gives more output for the money, while the planetary mixer's value is in fine and coloured work. The second is sizing on charge volume rather than compacted output, which leaves the batch smaller than expected. The third is neglecting blade clearance and cleaning, since a planetary mixer's even sweep depends on the blades being correctly set and the pan kept clean, and letting concrete build up undoes the very uniformity you bought the mixer for. Matching the type, the true output and the upkeep to your work avoids all three.
How to Choose the Right CPLN Model
Two questions usually settle the choice:
- What batch size does your line need? Match the compacted output to the work. CPLN-0.5 to CPLN-2 covers precast workshops up to larger high-consistency batches.
- What concrete are you making? Coloured, fine, self-compacting and precast mixes are where the planetary mixer earns its place; plain high-output concrete points to a twin-shaft unit.
Settle these at the order stage and you get a planetary mixer matched to your work and your batch. Constmach builds the CPLN range in-house, with HARDOX pan liners, NiHard blades and automatic lubrication as standard, and supports each mixer with spare parts and technical help through its working life.
