A twin-shaft concrete mixer blends concrete with two horizontal shafts whose paddles throw the material into an intense, overlapping action, giving a fast and very thorough mix. It is the highest-capacity and hardest-working mixer type, which is why it sits at the heart of high-output batching plants and is the choice for stiff, high-strength and mass concrete. Constmach builds the twin-shaft CTS range from the CTS-1 at 1,000 litres of compacted concrete per batch up to the CTS-5 at 5,000 litres.
What Is a Twin-Shaft Concrete Mixer?

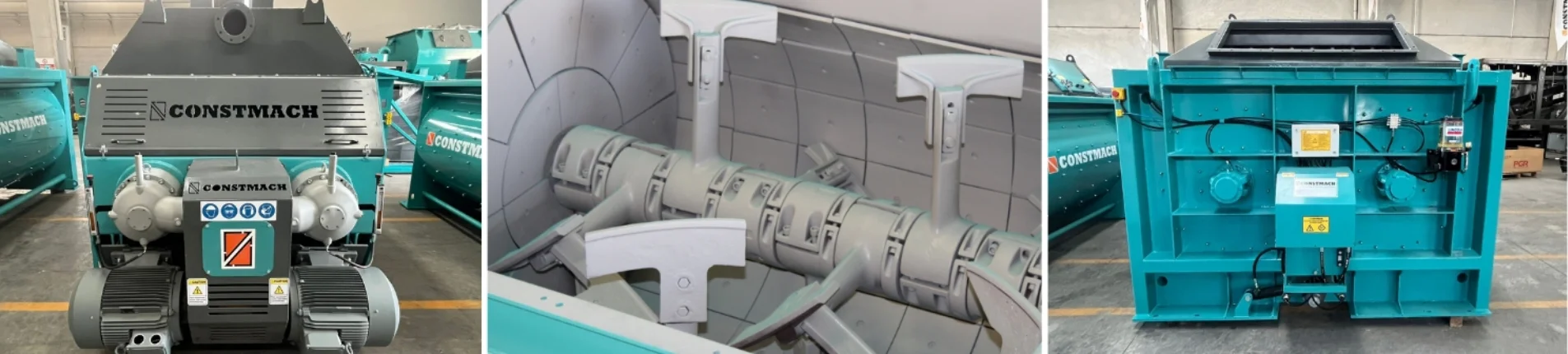

A twin-shaft concrete mixer is a forced-action mixer with two parallel horizontal shafts running side by side in a W-shaped trough. Each shaft carries mixing arms and paddles, and the two turn inwards so their paths overlap in the centre. That overlap is the defining feature: material is lifted, thrown across, folded back and carried along the trough all at once, so cement, water and aggregate are distributed through the whole batch in a short time. No other mixer type combines materials quite as aggressively, which is what lets the twin-shaft mixer handle large batches and difficult mixes.
The twin-shaft mixer is the mixing core of most high-output concrete plants for exactly this reason. When a plant has to turn out a uniform batch quickly, every cycle, the intensity and speed of twin-shaft mixing is what makes the rated output achievable in practice.
How a Twin-Shaft Mixer Works
The two shafts turn towards each other, and the arms are set at angles so they do three things at once. They lift and throw material across the centre, where the two streams meet and fold together; they move material along the length of the trough; and they keep the whole mass in constant, turbulent motion. The result is a three-dimensional mixing action that reaches every part of the batch quickly. Because the paddles drive through the concrete under power rather than relying on it tumbling, a twin-shaft mixer combines even a stiff, low-water mix that a gentler mixer would struggle to blend. When the cycle finishes, a discharge gate in the base of the trough opens and the batch drops cleanly into the truck or skip below.
Why Choose a Twin-Shaft Mixer?
The twin-shaft mixer earns its place where output and mixing power matter most:
- High output. It reaches the largest batch sizes and the shortest cycle times, so it suits busy ready-mix and central-mix plants.
- Stiff and high-strength concrete. Low-slump, high-strength and dry mixes need an intensive action to combine, which is the twin-shaft mixer's strength.
- Mass and roller-compacted concrete. Dams and large civil works pour stiff concrete in volume, work the twin-shaft mixer is built for.
- Consistent quality at speed. The thorough action gives a uniform batch quickly, so quality and output rise together rather than trading off.
For fine, coloured or very small-batch precast, a planetary or pan mixer may suit better, but for sheer output and the ability to mix demanding concrete, the twin-shaft mixer leads.
The Constmach CTS Range
The CTS range spans five sizes, so the mixer matches the plant's output rather than being over- or under-sized.
| Model | Charge volume | Compacted output | Drive |
|---|

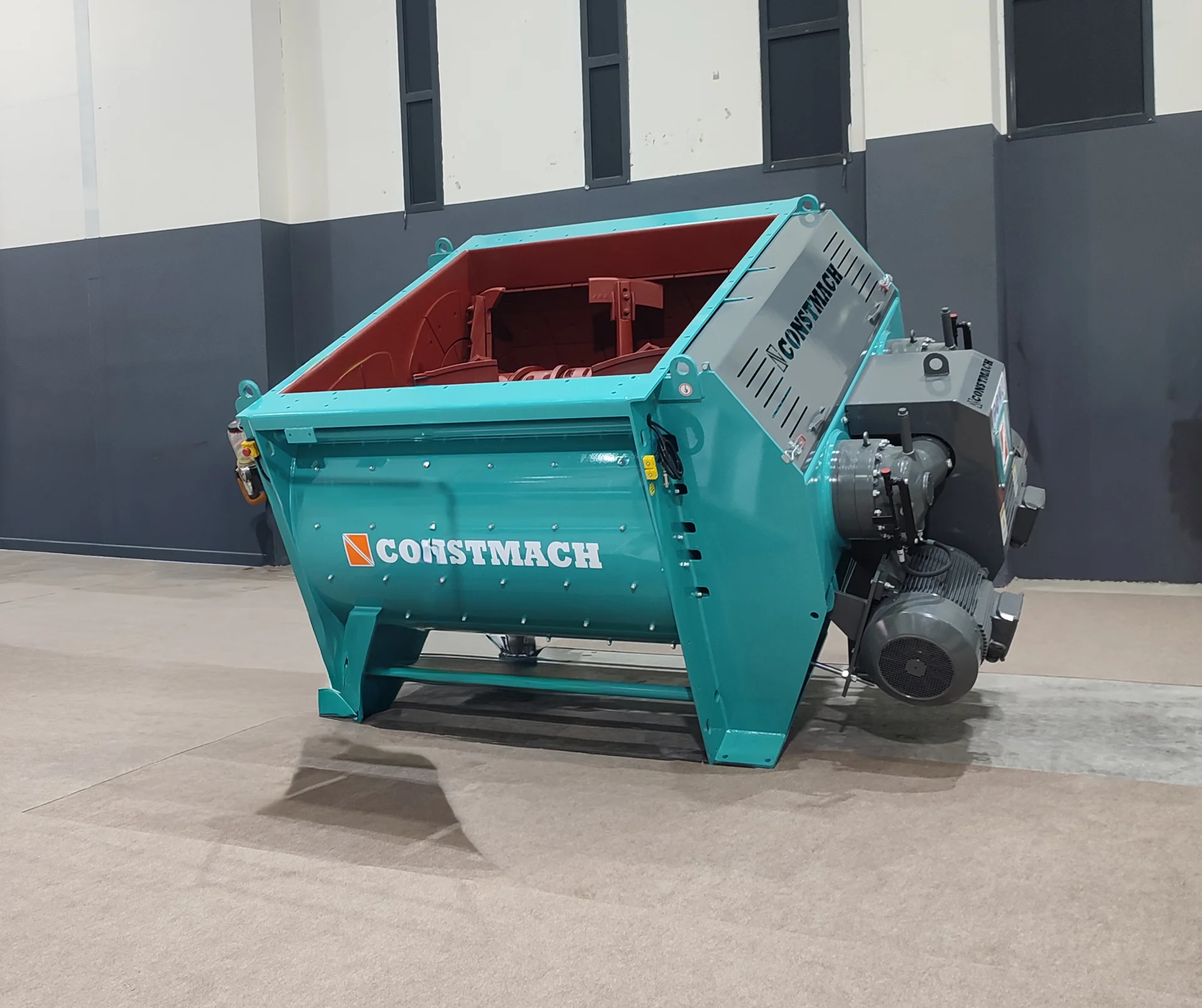

| CTS-1 | 1,500 lt | 1,000 lt | Single 37 kW |
| CTS-2 | 3,000 lt | 2,000 lt | Twin 37 kW |
| CTS-3 | 4,500 lt | 3,000 lt | Twin 55 kW |

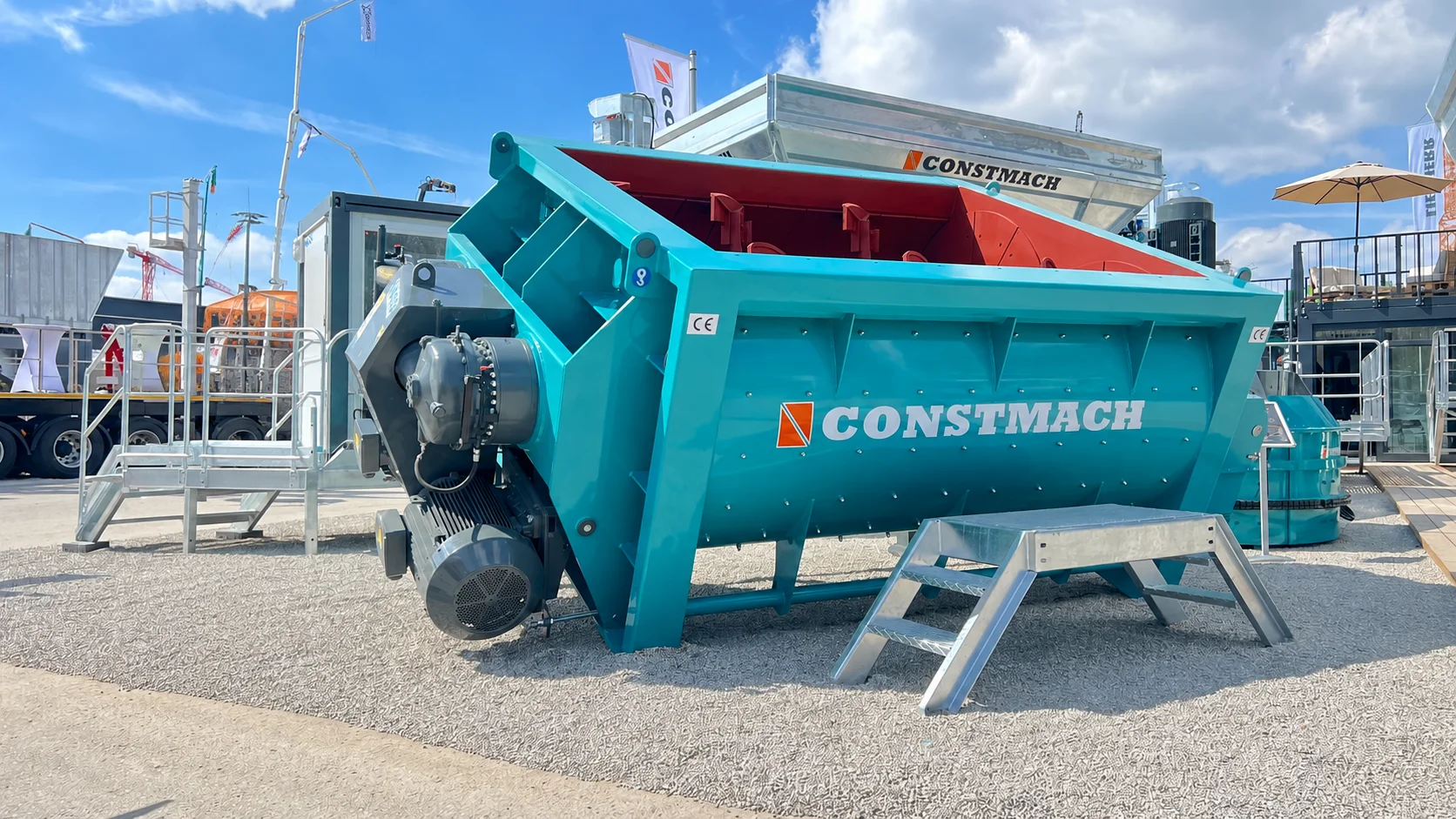

| CTS-4 | 6,000 lt | 4,000 lt | Twin 75 kW |
| CTS-5 | 7,500 lt | 5,000 lt | Twin 90 kW |
The figures show the charge volume, the loose material the mixer takes, and the compacted output, the finished concrete it produces, which is the number to size against. The CTS-1 suits a compact concrete plant, the CTS-2 and CTS-3 mid-range to high-output ready-mix and precast, and the CTS-4 and CTS-5 the largest central-mix plants and heavy civil work. The drive grows with the batch size, from a single 37 kW motor on the CTS-1 to twin 90 kW drives on the CTS-5.
Build Quality and Wear Parts
A twin-shaft mixer works hard, with two sets of arms driving through abrasive material under load, so the build decides how long it lasts. Constmach makes the CTS mixers for that duty:
- Inner wear liners in HARDOX or an equivalent wear-resistant steel, protecting the trough
- Mixing arms and paddles cast from NiHard, a hard, abrasion-resistant material
- Two heavy-duty drives with quality gearboxes on the larger models
- Bearings from established brands such as FAG, SKF or NACHI
- Automatic lubrication as standard, with the shaft-end seals a particular focus
The shaft seals deserve attention on any twin-shaft mixer, because two shafts pass through the trough wall and each penetration has to be kept sealed against cement and moisture. Constmach's automatic lubrication feeds these seals continuously, which is what keeps a twin-shaft mixer reliable through long service. Liners and arms in the right materials hold the mixing geometry far longer, so the action stays efficient between part changes.
Mixing Intensity and Cycle Time
The twin-shaft mixer is the fastest type, and short cycle times are a large part of its value. A thorough mix in well under a minute of mixing means more batches per hour, which is how a plant reaches a high hourly output. The intensity also means the mixer combines difficult concrete, fibre mixes, low-water high-strength designs, roller-compacted concrete, that a slower mixer would leave uneven or take far longer to blend. The mixing time is set during commissioning for the concrete you make, long enough for full uniformity and no longer, so output is not wasted on over-mixing.
Where Twin-Shaft Mixers Are Used
Twin-shaft mixers serve the most demanding concrete production. High-output ready-mixed concrete plants use them to supply construction across a region. Central-mix plants rely on them for large, uniform batches. Precast factories making structural elements use them for strong, consistent concrete, and the largest civil works, including dams and roller-compacted concrete projects, use the big CTS-4 and CTS-5 units for stiff concrete in volume. Wherever the job combines high output with demanding mixes, the twin-shaft mixer is the type that fits.
The Twin-Shaft Mixer in a Batching Plant
In a plant, the twin-shaft mixer sets the production rhythm: its batch size and cycle time decide how much concrete the plant makes in an hour. The mixer is fed from the weighing system above and discharges into the truck or transfer point below, with its operation timed by the plant's control system. Where demand outgrows a single mixer, two can be installed in one plant, the twin-mixer DoubleMix arrangement Constmach offers, to lift output without building a second plant. Sizing the mixer to the plant's target output, with the storage and truck logistics to match, is what lets the whole plant reach its rated capacity.
Discharge, Cleaning and Maintenance
A twin-shaft mixer discharges through a gate in the base of the trough, operated by the control system as part of the cycle. At the end of a shift the trough is washed out, because concrete left to harden builds up on the arms and liners and shortens their life. Maintenance centres on the wear parts and the seals: the liners, arms and paddles are inspected and replaced before they thin too far, the automatic lubrication reservoir is kept topped up, and the gearboxes, bearings and seals are checked on a schedule. Because there are two shafts, there is a little more to inspect than on a single-shaft mixer, but the routine is straightforward and the long-life wear materials keep the intervals sensible. Keeping a stock of the common wear parts means a change is a planned job rather than an unplanned stop.
The Mixing Pattern in Detail
What makes the twin-shaft action so effective is the geometry of the arms. On each shaft the arms are set at staggered angles, so as the shaft turns they bite into the material at different points along its length rather than all at once. The two shafts turn inwards, and in the central zone where their circles overlap the material thrown from one shaft meets the material thrown from the other, folding the two streams together. At the same time, angled arms walk the mix slowly along the trough and back, so no part of the batch sits still. Scraper arms near the trough ends and walls keep material moving off the surfaces instead of caking there. The combined effect is that every particle passes through the high-energy overlap zone many times in a short cycle, which is why a twin-shaft mixer reaches full uniformity faster than a single-shaft or pan mixer working the same batch.
Output in Practice: Batches per Hour
A mixer's real contribution to a plant is batches per hour, not just batch size. The full cycle is load, mix and discharge, and the twin-shaft mixer keeps all three short: it fills quickly from the weighing system, mixes thoroughly in well under a minute, and discharges fast through the base gate. Multiply the compacted batch by the number of cycles an hour and you have the plant's mixing capacity. This is why a twin-shaft mixer is matched carefully to the rest of the plant, the weighing has to keep it fed and the trucks have to clear each batch, or the mixer waits and the hourly figure falls. When the mixer, the weighing and the truck cycle are balanced, the twin-shaft mixer delivers the high, steady output it is built for. Sizing the mixer to the plant's target, with a little margin, is what keeps the busiest pours moving.
Concrete Quality and Traceability
An even mix is not only about strength; it is about every load being the same. A twin-shaft mixer distributes cement, water and any admixtures uniformly through the batch, so the concrete reaches its design strength and workability throughout rather than in patches. Combined with accurate weighing and automatic moisture correction on the plant, that gives concrete a producer can stand behind. The plant's control system records each batch, the recipe, the weights and the mixing, so there is a traceable history for quality control and for any question over a delivered load. On a high-output plant running thousands of batches, that record is part of running a credible operation, and the consistency the mixer provides is what makes the record meaningful.
Common Mistakes to Avoid When Choosing a Twin-Shaft Mixer
The first mistake is sizing on charge volume rather than compacted output, which leaves the batch smaller than expected; always size to the compacted figure, the concrete you actually place. The second is under-sizing the mixer for the plant's target output, so the mixer becomes the bottleneck that holds the whole plant below its rated capacity. The third is overlooking the shaft seals and lubrication when comparing mixers, since the seals are the part most exposed to cement and a poorly sealed twin-shaft mixer is a maintenance burden. Matching the output, the build and the seals to your duty avoids all three.
Long-Term Value
A mixer is judged over years, not at purchase. The twin-shaft mixer's high output and short cycles raise the concrete a plant can sell, while its hard-wearing liners and arms keep the cost of wear parts and downtime in check over a long life. A mixer built in softer materials may cost less to buy but more to run, in replacement parts and lost production, so the true comparison is the cost over the mixer's working life rather than the purchase price alone. Built for abrasion and backed by parts from the original manufacturer, a CTS mixer is specified to keep earning across many years of hard duty.
How to Choose the Right CTS Model
Two questions usually settle the size:
- What output does your plant need? Match the mixer's compacted batch and cycle time to the plant's target. CTS-1 to CTS-5 covers compact concrete batching plants up to the largest central-mix and dam work.
- What concrete do you make? Stiff, high-strength, fibre or roller-compacted mixes confirm the twin-shaft choice and may point to a larger drive for the duty.
Settle these at the order stage and you get a twin-shaft mixer matched to your plant and your concrete. Constmach builds the CTS range in-house, with HARDOX liners, NiHard arms and automatic lubrication as standard, and supports each mixer with spare parts and technical help through its working life.
